Description
The 4 hooks air payload drop release mechanism system, based on DJI payload SDK, compatible with DJI Matrice 300 /350 RTK drone, controls the air dropper via DJI Pilot. the m350 payload drop release hooks only 210g, max loading weight up to 20 kg (should consider the drone’s capacity ), and can complete four drop tasks in a single flight, it is widely used for emergency rescue, and material & goods delivery.
Specs;
Model No | PT4 |
Size | 59*59*93mm |
Weight | 210g |

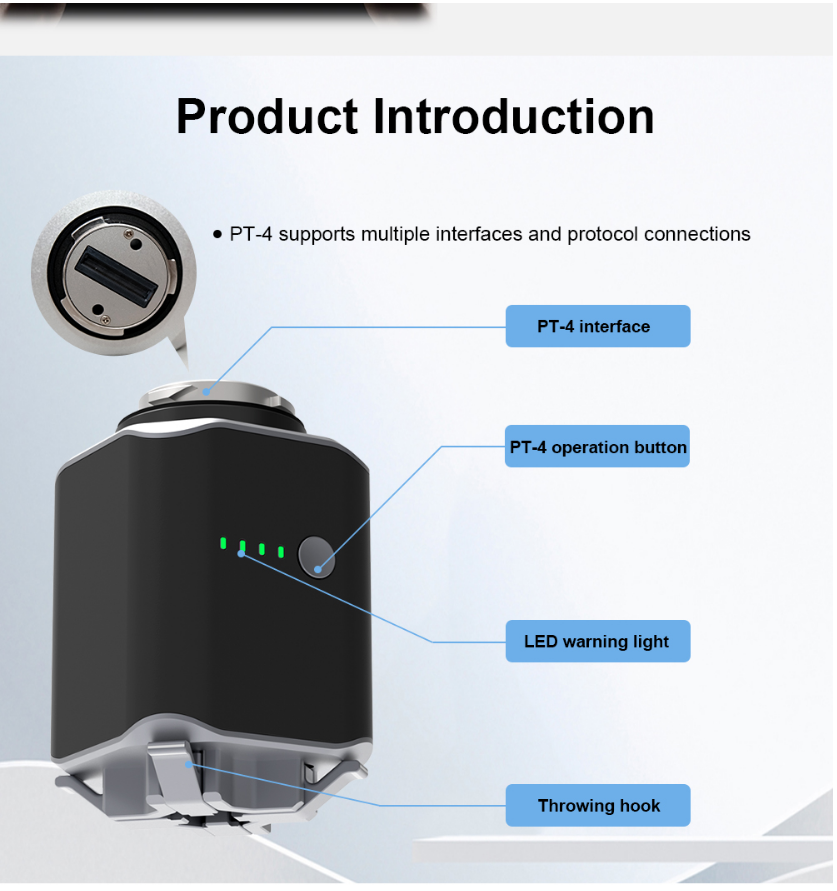

Function | 1. Can simultaneously mount 4 items and drop them in sequence 2. identification of the mounting status of each hook, LED display of the feeding position, locking the throwing device to prevent accidental contact., 3. The maximum loading weight 20Kg, (the actual load weight is based on the drone’s load capacity) 4. Abnormal information display |
Load weight | each hook max payload load weight 5Kg, a total 20Kg, |
Control & Operation | DJI Pilot 2 |
Control distance | As far as drone flight |
Working temperature | -20℃ –50 ℃ |
