Description

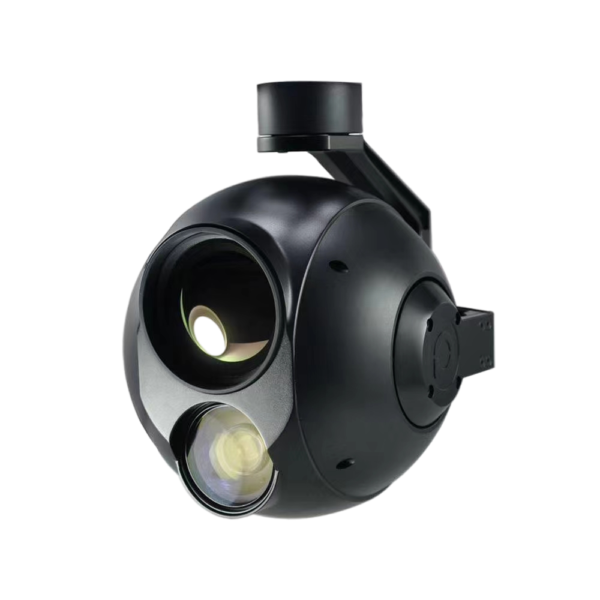

The multi-function 3 axis drone gimbal camera integrated with 30X optical sony sensors zoom and the 640X480 50mm lens thermal imaging sensors, support object tracking function, visible light and thermal imager dual sensors objecttTracking, working with the multi-rotor drone and VTOL, fixed-wing drones. quickly release design, support UART / PWM / PPM / S.BUS / TCP / UDP control, and HDMI/RJ45/SDI, video output, it can be used for night surveillance, search, inspection, and firefighting.
Main features:
- 3 axis stabilization gimbal, based on FOC technology features high stability, accuracy, and sensitivity
- Quickly release design, easy to install and use.
- 30X optical zoom camera , 2.13MP , SONY 1 / 2.8″ “Exmor R” CMOS .
- 50mm lens 640*480, 25Hz thermal imaging sensor.
- Support optical zoom camera and thermal imaging camera object Tracking function.
- Multiple control methods are available ,UART / PWM / PPM / S.BUS / TCP / UDP
- Multiple video output, HDMI/RJ45/SDI,
- It can output network ports and support UDP and TCP protocols, RTMP streaming, RTSP streaming.
Specification:
| Hardware Parameter | |
| Working voltage | 12V |
| Input voltage | 3S ~ 6S |
| Output voltage | 5V (connect with PWM) |
| Dynamic current | 900mA @ 12V |
| Idle current | 750mA @ 12V |
| Working environment temp. | -20℃ ~ +60℃ |
| Output | micro HDMI(1080P 60fps) / IP (720p) / SDI (1080P 30fps) |
| Local-storage | TF card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Picture storage format in TF card | JPG(1920*1080) |
| Video storage format in TF card | MP4 (1080P/720P 25fps/30fps) |
| Control method | PWM / TTL / S.BUS / TCP(IP output) |
| Gimbal Spec | |
| Angle range of structure design | Pitch/Tilt: -40°～110°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP / SDI output version) |
| Angle range of software design | Pitch/Tilt: -30°～90°, Yaw/Pan: ±290° / ±360°*N (IP / SDI output version) |
| Vibration angle | Pitch/Roll: ±0.02°, Yaw：±0.02° |
| One-key to center | √ |
| 30X optical zoom Camera specs | |
| Image Sensor | SONY 1/2.8″ “Exmor R” CMOS |
| Picture quality | Full HD 1080 (1920*1080) |
| Effective pixel | 2.13MP |
| Lens optical zoom | 30x, F=4.3~129mm |
| Digital zoom | 12x (360x with optical zoom) |
| Min object distance | 10mm(wide end) to 1200mm(tele end). Default 300mm |
| Horizontal viewing angle | 1080p mode: 63.7°(wide end) ~ 2.3°(tele end) |
| 720p mode: 63.7°(wide end) ~ 2.3°(tele end) | |
| SD: 47.8°(wide end) ~ 1.7°(tele end) | |
| Sync system | Internal |
| S/N ratio | more than 50dB |
| Min illumination | Color [email protected] |
| Exposure control | Auto, Manual, Priority mode(shutter priority & iris priority), Bright, EV compensation, Slow AE |
| Gain | Auto/Manual 0dB to 50.0dB(0 to 28 steps + 2 setep/ total 15 steps) Max.Gain Limit 10.7 dB to 50.0dB (6 to 28 steps + 2 step/ total 12 steps) |
| White balance | Auto, ATW, Indoor, Outdoor, One Push WB, Manual WB, Outdoor Auto, Sodium Vapor Lamp (Fix/ Auto/Outdoor Auto) |
| Shutter speed | 1/1s to 1/10,000s, 22 steps |
| Backlight compensation | Yes |
| Aperture control | 16 steps |
| Defog | Yes |
| OSD | Yes |
| 30X Zoom Camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object contrast | 5% |
| SNR | 4 |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| The mean square root values of pulse noise in the object position | < 0.5 pixel |
| 50mm lens Thermal Image camera Spec | |
| Lens size | 50mm |
| Horizontal FOV | 12.4 |
| Vertical FOV | 9.3 |
| Diagonal FOV | 15.5 |
| Detective Distance (Man: 1.8×0.5m) | 1471 meters |
| Recognize Distance (Man: 1.8×0.5m) | 368 meters |
| Verified Distance (Man: 1.8×0.5m) | 184 meters |
| Detective Distance (Car: 4.2×1.8m) | 4510 meters |
| Recognize Distance (Car: 4.2×1.8m) | 1127 meters |
| Verified Distance (Car: 4.2×1.8m) | 564 meters |
| Working mode | Uncooled longwave (8μm~14μm) thermal imager |
| Detector pixel | 640*480 |
| Pixel size | 17μm |
| Focusing method | Athermal prime lens |
| Emissivity correction | 0.01~1 |
| NETD | ≤60mK (@25℃) |
| MRTD | ≤650mK (@characteristic frequency) |
| Image enhancement | Auto adjust image brightness and contrast ratio |
| Color palette | White, iron red, pseudo color |
| Auto Non-uniform correction | Yes (no shutter) |
| Digital zoom | 1x ~ 4x |
| Sync correct time | Yes |
| Thermometry type | Temperature bar (psudo color display) max temp, min temp, FOV center temp (Optional) |
| Temperature warning | 0℃~120℃ (For thermometry version only) |
| Thermal Imager camera Object Tracking | |
| Update rate of deviation pixel | 50Hz |
| Output delay of deviation pixel | 5ms |
| Minimum object size | 32*32 pixel |
| Maximum object size | 128*128 pixel |
| Tracking speed | 32 pixel/frame |
| Object memory time | 100 frames (4s) |
| Packing Information | |
| N.W. | 1395g |
| Product Size. | 127.6*164.5*173.5mm |
| Accessories | 1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards, 1pc USB to TTL cable / Hight quality plastic box with foam cushion |
