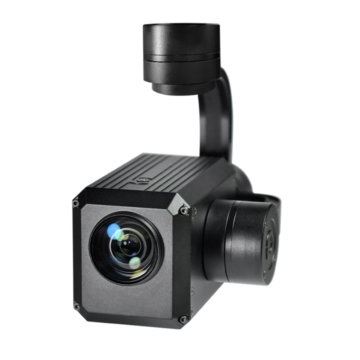

The 2 in 1 multi-function drone gimbal camera included 30X optical zoom camera and the 800M Infrared laser night vision lights, good to use at night, In the dark, drone security monitoring, surveillance, police law enforcement, 800M infrared laser fill light, you can view clearly at night.
- SONY 30x optical zoom starlight camera.
- 1080P video output 2.13 MP.Fast focus.
- Real-time video target tracking function.
- Quick-release structure, 3-axis gimbal stabilization
- 360-degree rotation, Intelligent follow-up of gimbal speed, and focal length changes.
- 800M intelligent zoom type 850nm infrared laser fill light.
- Drone setting, One-key switch between SBUS signal control and serial port control.
- One-key switch between HDMI and network port output.
NT- 30P drone gimbal camera by aviation aluminum alloy and high-strength nylon. It has high strength, good vibration absorption, rain resistance, dust resistance, and corrosion resistance. The refined circuit system can be stable under low-temperature conditions of -10°C. Work, able to adapt to the harsh field working environment.
The NT- 30P drone gimbal camera advanced 3-axis tilt angle stabilization gimbal, which allows the camera to remain stable during intense movements. The pan-tilt and the aircraft work closely together, and the high-speed processor controls the precise operation of the motor to compensate for every subtle movement, so that the camera maintains a stable shooting angle, and can shoot clear and stable pictures even in high-speed flight and severe vibration.
In order to better meet the application requirements of multi-rotor and fixed-wing UAVs, NT- 30P drone gimbal camera has developed an original intelligent mechanical design structure, which realizes 360° rotation without dead angles and can freely obtain the unconstrained all-round vision.
Benefit from intelligent mechanical design structure, NT- 30P camera can be loaded and unloaded at an extremely fast speed. The trigger locking structure greatly increases the connection strength. It completely bids farewell to the cumbersome and threaded sliding buckle caused by the old screw fixing structure and enjoys the intelligent structure. Heart-free experience.
The gimbal camera uses a SONY 30x starlight optical zoom lens, which can easily capture distant details and clearly presents the distant scene regardless of day or night. At the same time, it has a video tracking function, which makes it easy to perform reconnaissance and surveillance tasks. The drone gimbal camera has the intelligent follow-up function of the pan/tilt rotation speed and focal length change, that is, when the focal length is large, the slow speed is used for more precise control; when the focal length is small, the speed is used quickly, and the control is more sensitive and quick.
The 30X optical zoom camera integrates an 800M 850nm wavelength intelligent infrared laser fill light module, which is dedicated to security night vision monitoring fill light; it can launch a safe surface in the dark without a light source VCSEL, with uniform light spot and transparent image quality, can automatically adjust the lighting distance in real-time with the 30X optical zoom camera.
The camera is compatible with various drone platforms. It can control the gimbal camera individually through the RC remote control at close range, or control the UAV and gimbal camera at the same time through the flight control system at a distance. It can also support The DJI A3 flight control system and the DJI LIGHTBRIDGE2 transmission system are precisely controlled, and a variety of peripheral connection schemes allow you to use it without any restrictions.
Specification:
Gimbal Camera Body | |
Material | aviation aluminum alloy |
Size | 147(L)×137(W)×176.5(H) |
Weight | 750g |
Operating temperature | -10°C~50°C |
Protection level | IP43 |
stabilization axes | 3 Axis gimbal |
Input voltage | 1 6v-52v (4s-12s) |
Power | 21.6W |
Control angle range | 360(Heading); -120°~30°(Pitch) |
Maximum control speed | Pan: 90°/s, Tilt: 90°/s |
Control signal | S.BUS, serial communication |
Mode | Direction lock; heading follow; camera facing down |
30X Optical Zoom Camera | |
Sensor | 1/2.8 inch Exmor CMOS |
focal length | 4.3~129.0mm |
Zoom factor | 30X Optical Zoom |
Focusing speed | <1S |
Video output format | 108OP, 30 frames/1080P, 60 frames |
Maximum resolution | 1920X1080 |
Effective Pixels | 2.13MP |
Minimum object distance | 10mm (wide-angle end) to 1200mm (distal) |
Night vision level | Starlight |
Infrared laser night vision fill light | |
Effective lighting distance | 800M |
wavelength | 850nm |
Lighting angle | Electric zoom, 2.0°~70° continuously adjustable |
