This is a 4-in-1 Multi-function drone gimbal camera, 30X optical zoom camera, 640X512 35mm lens thermal imaging camera, 3000M Laser rangefinder, target tracking, work with Multi-rotor, fixed-wing, VTOL drone.
- Panasonic (or Sony) 30x optical zoom starlight camera.
- 1080P video output 2.13 MP, fast focus.
- Real-time video target tracking function.
- 640X512,35mm lens,12um thermal imaging camera.
- Thermal imaging pseudo-color switching. Dual-light picture-in-picture fusion display.
- Military 3000m high-precision laser ranging, Support target coordinate positioning.

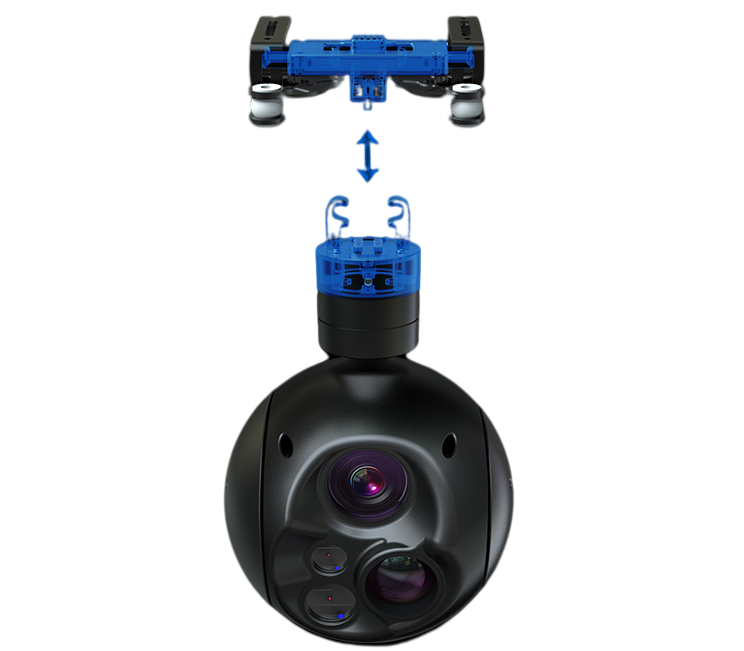

- Quick-release structure, 3-axis gimbal stabilization
- 360-degree rotation, Intelligent follow-up of gimbal speed, and focal length changes.
- Drone setting, One-key switch between SBUS signal control and serial port control.
- One-key switch between HDMI and network port output.
- High-quality camera body, aviation aluminum alloy It has high strength, good vibration absorption, rain resistance, dust resistance, and corrosion resistance.
- Compatible with various drone platforms. It can control the gimbal camera individually through the RC remote control at close range, or control the drone and gimbal camera at the same time through the flight control system at a distance.
The NT504 Pro multi-function drone gimbal camera integrates Panasonic’s 2.3MP 30x optical zoom star-level camera, and IRay’s new generation of 12 um high-quality thermal imaging module, as well as military high-quality 3000-meter-class, 905nm laser wavelength, the laser ranging module has been calibrated strictly parallel to the optical axis to ensure that the laser ranging target is always located at the center point of the visual acquisition screen; and transmits the angle motion data and target distance information of the three-axis pan/tilt through the serial interface, Eliminate the trouble of replacing equipment, greatly improve work efficiency, and bring you an efficient and convenient drone aerial laser ranging solution, which can meet the needs of military, police, fire fighting, electric power, petrochemical, agriculture, forestry, and emergency rescue.
Specification:
Gimbal Camera Body | |
Material | aviation aluminum alloy |
Size | 145(L)×180(W)×217(H)mm |
Weight | 1150g |
Operating temperature | -20°C~50°C |
Protection level | IP43 |
stabilization axes | 3 Axis gimbal |
Input voltage | 16-52V (4S-12S) |
Power | 21.6W |
Control angle range | 360(Heading); -120°~30°(Pitch) |
Maximum control speed | Pan: 90°/s, Tilt: 90°/s |
Control signal | S.BUS, serial communication |
Mode | Direction lock; heading follow; camera facing down |
30X Optical Zoom Camera | |
Sensor | Panasonic 1/3 inch Progressive CMOS (or Sony sensor ) |
focal length | 4.3~129.0mm |
Zoom factor | 30X Optical Zoom |
Focusing speed | <1S |
Video output format | 108OP, 30 frames/1080P, 60 frames |
Maximum resolution | 1920X1080 |
Effective Pixels | 2.13MP |
Minimum object distance | 10mm (wide-angle end) to 1200mm (distal) |
Night vision level | Starlight |
Thermal Imaging Camera | |
Resolution | 640X512 |
Lens | 35mm |
Wavelength range | 8~14um |
Frame rate | 50Hz |
Sensitivity (NETD) | ≤50mK@25C,F#1.0 (≤40 mK optional) |
Polarity | black hot/white hot |
Pseudocolor | support |
Laser rangefinder | |
Effective range distance | 3000M |
wavelength | 1535±5 nm |
