Description

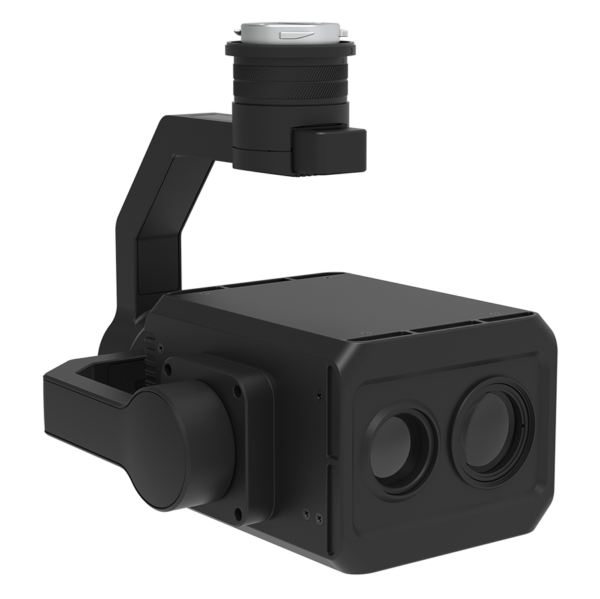

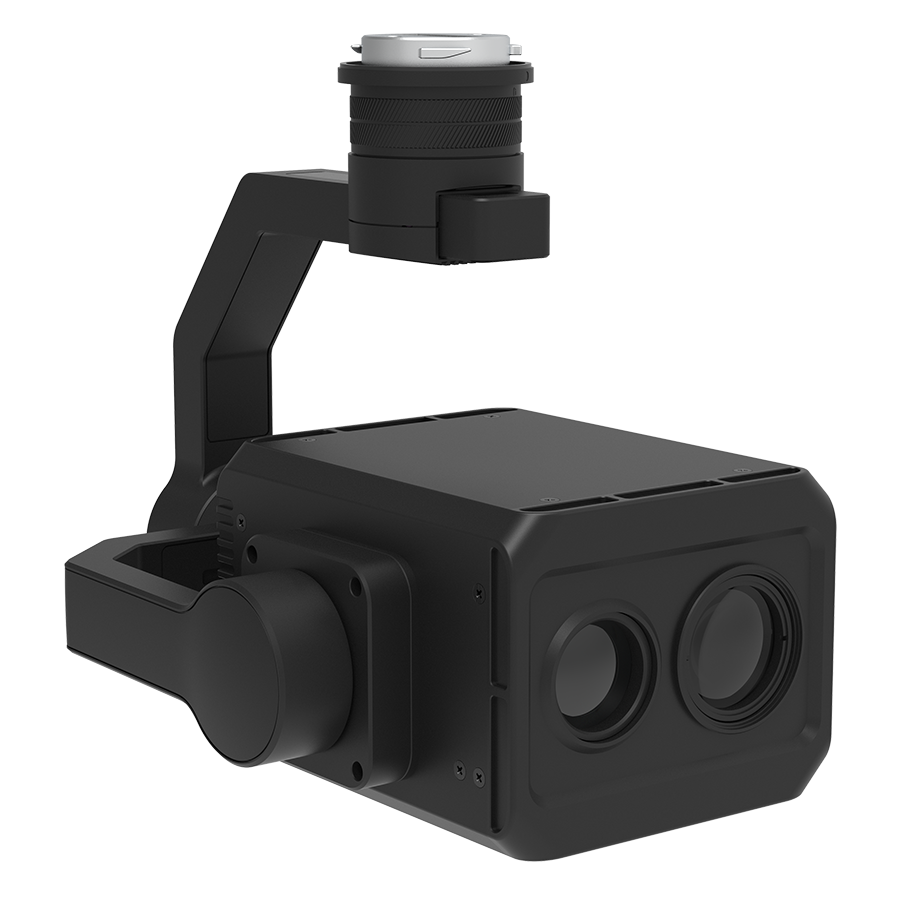

Ultraviolet UV Camera for DJI M350, based on DJI SDK, seamlessly compatible with DJI Matrice 350 RTK, UV cameras for powerline inspection are specialized devices used to detect corona discharge, which is the ionization of air surrounding high voltage conductors. Corona discharge can indicate potential faults or issues with powerlines, transformers, and other electrical equipment, the main detections include corona discharge, insulation defects, poor contacts, pollution and dirt, and equipment aging.
- DJI SDK Payload, easy to use, DJI M350 drone, plug and play.
- Detects ultraviolet signals in the 240-280nm band, used for partial discharge inspection, not affected by sunlight.
- UV cameras are sensitive to the ultraviolet light emitted during corona discharge. They can capture images or video footage of the corona effect, allowing inspectors to identify potential problems.
- DJI M350 UV cameras used for powerline inspection are highly sensitive. They can detect even low levels of corona discharge, which may not be visible to the naked eye during daylight.
- Remote Inspection, the cameras can be mounted on m350 drone for aerial inspection of powerlines. This enables inspectors to access difficult-to-reach or hazardous areas without the need for manual inspection.
- Real-time Monitoring: the DJI M350 UV camera systems offer real-time monitoring via the EO/UV dual sensor, allowing inspectors to view live footage of powerlines and quickly identify any corona discharge or abnormalities.
Specs:
General Specs | |
---|---|
Weight | 800g |
Power | 9W |
Storage | 64GB |
Protocol | DJI SDK |
Image format | JPG |
Video Format | MP4 |
Gimbal Axis | 3 Axis |
Accuracy | ±0.01 |
Pitch | -120° to +30° |
Yaw | ±320° |
UV Camera | |
Resolution | 720×576 |
Wave Length | 240-280nm |
Display | EO/UV+EO |
Photon Count | realtime/accumulation |
Color | 7 different colors |
FOV | 20°x15° |
Sensitivity | 3×10-18 W/cm2 |
Offset Correction | Via APP on DJI Pilot |
Gain | 16 Level |
EO Visible Light Camera | |
Resolution | 3264×2448 |
FOV | 9°~52° |
Sensor | 1/3 inches |
Effective Pixel | 8MP |
Optical Zoom | 10X (4.9~49mm) |
Pixel Size | 1.5um |
