6 Hours endurance flight long-range battery-powered VTOL For Mapping and surveillance, powered by battery, 6 hours endurance flight time, Max payload 20Kg, 100KM + video transmission, industry VTOL drone platform.

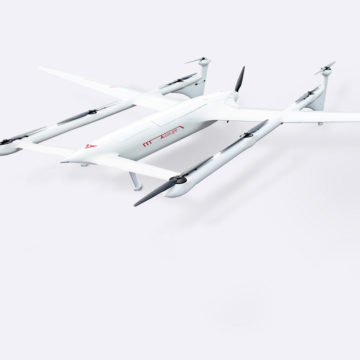

This is the best long endurance lithium battery-powered VTOL, Max 6 hours flight time, big size VTOL 6M wingspan, Max payload 20Kg, Max take-off weight 68Kg.
- 6Hours endurance flight, Max payload 20Kg, Max take-off weight 68Kg, Max flight range 500KM.
- 100+KM video transmission, Dual Frequency dual Link data transmission System, COFDM technology,845MHz, and 1.4G dual backup key data transmission link,100KM+ Video transmission to achieve 1080P transmission.
- Dual Link CAN and Redundant Flight Control. Dual redundant CAN mainline, high-speed inter-net mainline, redundant flight control module, replaceable independent avionic module IMA Structure.
- V-type R&D Process, Military industry quality, high safety, strictly adopted aviation system development standard, rigorous and durable.
- Intelligent onboard Al. Real-time return of the moving target recognition in the video screen, and the system will feedback the position coordinates at the same time. The historical shooting data and current shooting data of the same area can be compared and analyzed, and the changing area that meets the requirements can be found and marked. Establish a characteristic target database and use intelligent algorithms to support the detection of attention targets meeting certain size requirements in the field of view, and discover and mark the target type and position.
- Smart network connection, convenient connection with the world 4G/5G network, seamless connection with operators, support for private channels, data security.
- Multiple optional part design .optional to equip: battery, compartment or equipment, meet different usage, flexible applications.
- lithium battery-powered, with smart BMS battery management, ensure the VTOL UAVs long-endurance up to 6 hours.
|Drone type||Battery Powered VTOL|
|Aerodynamic design||Canard design|
|Power distribution||8*lifting motors/1*propulsion motor Capable of hover normally with up to 2*lifting motors/propellers failure on different sides|
|Max Take off weight||68Kg|
|Maximum payload weight||15kg(One big battery + one small battery))|
20kg(TWO Big Battery )
|Maximum ascending speed (VTOL)||3M/S|
|Maximum descending speed (VTOL)||2M/S|
|Cruising speed||25m/s (90km/h)|
|Flying speed||34.8m/s (125km/h)|
|Maximum takeoff altitude||4500M|
|Maximum flying altitude||6000M|
|Maximum wind resistance||Level 7 in cruise|
|Material||Carbon fiber composite in 95% area|
Glass fiber composite in 5% area
|Landing accuracy||1-2m standard|
0.5m with RTK
|Maximum Endurance||3 hours+ when carrying 10kg Payload|
2.5 hours+ when carrying 15kg Payload
6 hours when carrying 1kg Payload
|Maximum flight range||500KM|
One set of dual-GNSS antenna
|AHRS facilitation||5 mins after GNSS signal lost|
|Safety Assurance||One-button RTL/Data link loss RTL/Low battery RTL Abnormal attitude RTL/Key sensor failure RTL/|
Up to 2 VTOL motors failure protection/
Gliding after tail rotor thrust failure
|Motor||Brushless electric motor|
|Propeller||30 inch customized carbon-fiber VTOL prop.|
24 inch customized carbon-fiber Fixed-wing prop
|Battery type||Li-ion/14S 2 or 3 pieces as options|
|Battery capacity||61500mAh for each piece/11.8kg each piece|
|Battery charger||Fast charger 2 hour to charge each piece|
|Data/Video Integrated link||1427.9-1447.9MHz by choice|
|Mode||TDMA/5 Time slots Data or Video allocated by need|
|Antenna||2 as Single Tx Dual Rx|
|Max Data /Video link range||100km+|
