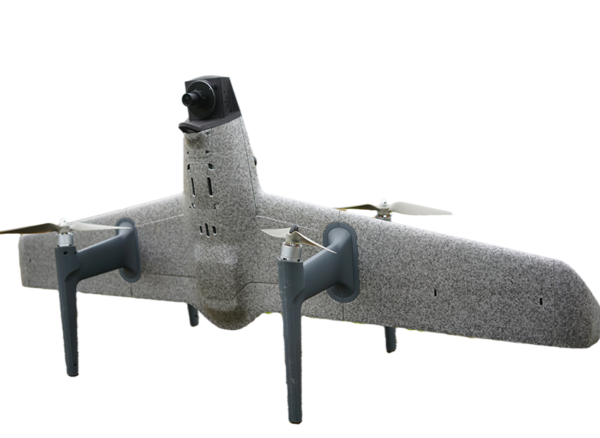

Vertical take-off and landing VTOL Mapping drone, the world’s first non-rudder surface controlled fixed-wing VTOL UAVs.special design for mapping and survey, ready to fly kits, included sony camera and PPK, ensure precious mapping. this is the most cost-effective VTOL mapping drone which you can find in the market.
The HQ-K1 has vertical take-off and landing function, the drone pilot can freely fly without any flight field restrictions. The whole VTOL drone kit is modular design, few structural parts, no other moving parts except 4 brushless motors, no additional tools for disassembling parts, and high reliability. Onboard GPS, you can rely on GPS to hover in the rotor mode, and you can return home with one key in both the rotor mode and the fixed-wing mode. It greatly reduces the learning difficulty of fixed-wing UAV flights and enhances the user’s flying experience.
The HQ -K1 VTOL surveying and mapping version is a surveying and mapping fixed-wing UAV that can take off and land vertically and switch flight modes with one button. No rudder surface control, The system technology brings users a minimalist control experience while also achieving centimeter-level mapping accuracy, achieving image-free control measurement.
The VTOL Mapping drone is Lightweight, easy to carry, easy to disassemble and install, can be operated by one person, long battery life.
Compare with other VTOL Mapping UAV, such as Wingtra, atmos marlyn , we are high quality and much cheaper, cost-effective. but performance also keeps a high level.
Main Application; It can be applied to surveying and mapping, surveying, urban planning, energy projects, road construction projects, mine surveying, and other industrial applications.
You will get :
1: the VTOL drone
3:built in sony camera
It is a full set, ready to fly, and mapping work kits.
VTOL Drone Mapping specification;
|Weight||1.15Kg (without payload)|
|Maximum take-off weight||1.75Kg|
|Remote control distance||10KM|
|Video transmission distance||10KM|
|Battery||LiPo 4S 5500mAh|
|Camera type||APS full frame|
|Lens mount||Sony E mount|
|GNSS signal||GPS, GLONASS, BDS (Beidou), Galileo|
|Light trigger||satellite, storage, power|
|Positioning horizontal accuracy||2cm+1ppm|
|Positioning vertical accuracy||4cm+1ppm|
|Mapping Work efficiency|
|Overlap rate||80×70 resolution 5/10/20 cm 60 minutes flight|
|1:500 flight height 210 M||2-3 km² per flight|
|1:1000 flight height 420M||4-5 km² per flight|
|1:2000 Flight height of 840M||8-9 km² per flight|
|Mapping Working accuracy|
|1:500 Image-free control||Horizontal accuracy ≤ 5cm|
Elevation accuracy ≤ 5cm
|1: 1000 image-free control||horizontal accuracy ≤ 8cm|
Elevation accuracy ≤ 10cm
|1:2000 Image-free control||horizontal accuracy ≤ 15cm|
Elevation accuracy ≤ 20cm
