Description

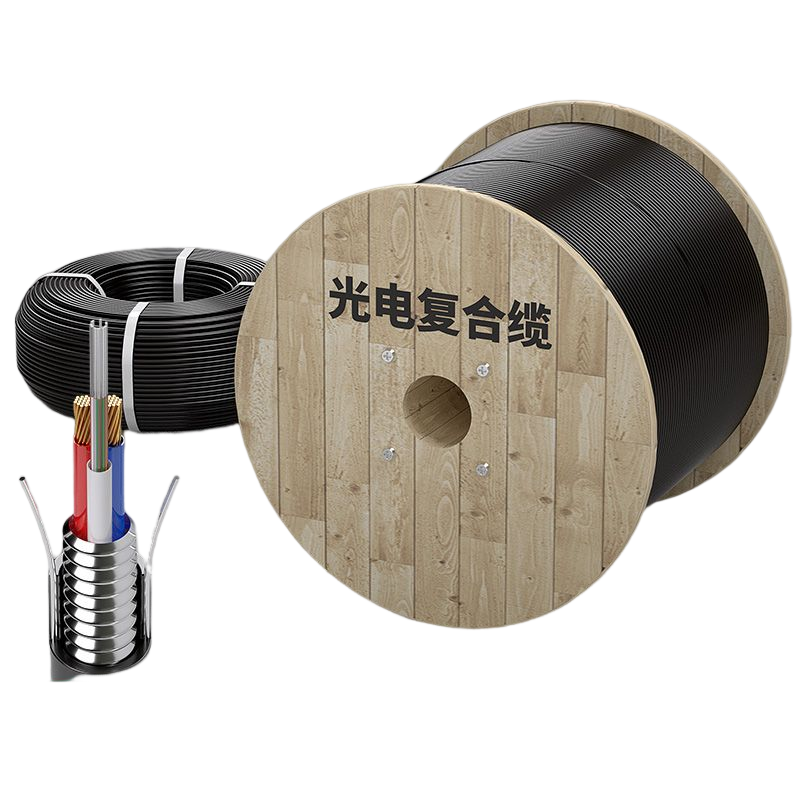

Photoelectric composite fiber optic and powerline 2-in-1 cable for tethered drone system, it contains two powerline cables and two optical fibers which transfer data, This tethered cable is used in tethered drones as a control cable between the drone console and the drone. This cable has the advantages of high tensile strength and lightweight and is very suitable for use in the air.
◆ Conductor 19*0.18mm silver-plated copper wire stranded wire cross-sectional area 0.5mm²
◆ Insulation: Teflon (FEP) Color: black, red
◆ Insulated wire diameter：1.3-1.4mm
◆ Optical fiber: 1-core single-mode optical fiber (SM G.657A2), invisible optical cable,the outer diameter of optical cable 0.9±0.1mm sheathed high-strength aviation fiber, outer
diameter 4.5±0.1mm
◆ Rated Voltage DC 1500V
◆ Current：5A
◆ Power：3500W，Peak power：4500W
◆ Working Temperature：-40℃- 200℃
◆ Ampacity：9A
◆ Insulation resistance：≥1000MΩ.km
◆ withstand voltage： Between core and core 3.5kv/min
◆ Weight：≤2.0kg/100M
◆ bending radius ≥60mm
◆ tensile strength ≥50Kg
