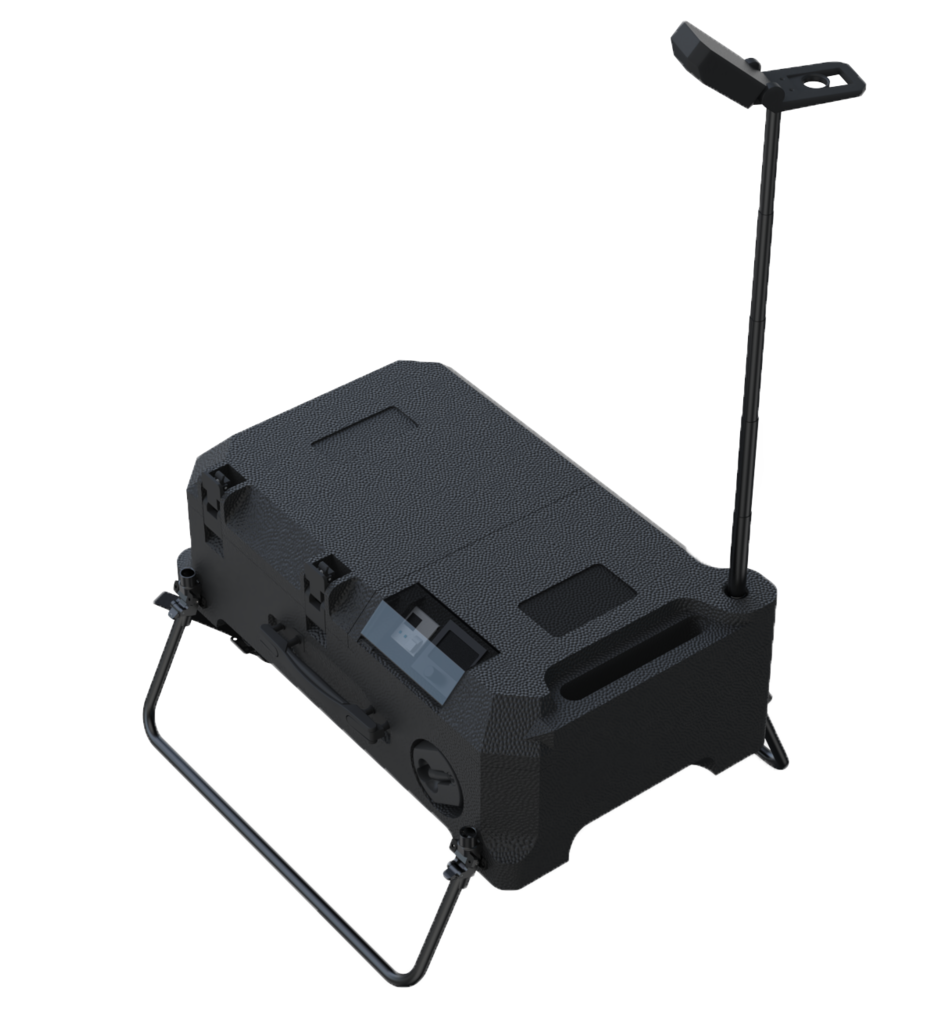

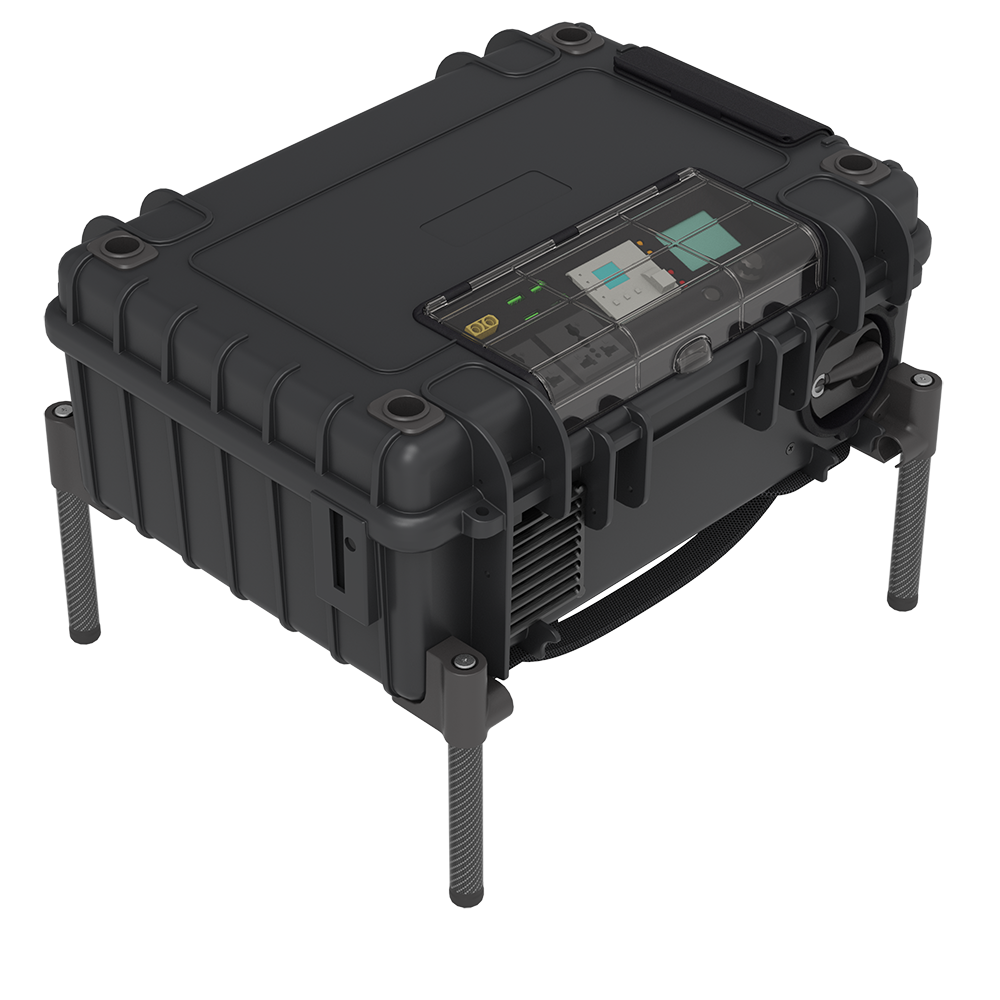

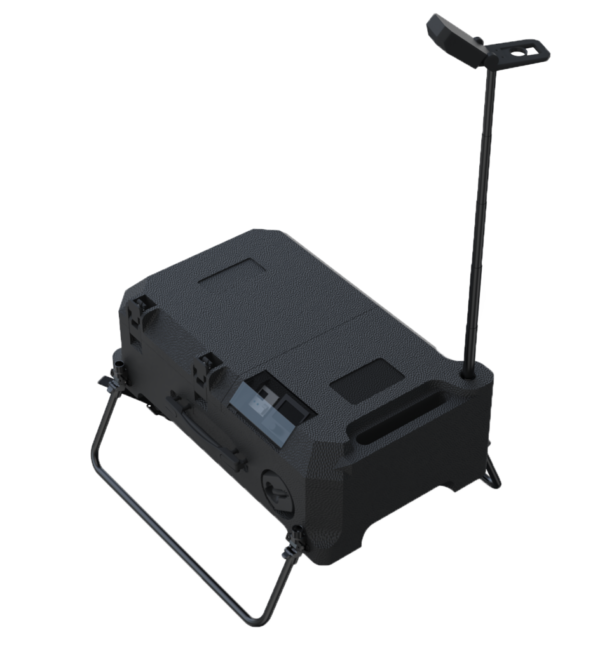

The tethered system for DJI M30 drone is a portable backpack tethered system, DJI M30T tethered system is equipped with LED lighting, red and blue warning lights, and a folding tripod which can avoid contact with the harsh ground environment when unfolded on the ground. The material of the tethered box is made of environmentally friendly materials. The place where it fits on the back of the human body is ergonomically designed. While high integration provides portability, the automatic take-up and release function of the 50/100M cable can ensure that the tethering system can be deployed and recovered quickly. Built-in energy storage, it can also work continuously for a long time without mains power.
The new design portable DJI M30T tethered system can be carried on the shoulder and can be hand-carried, convenient to move. The backpack M30 tether system includes 2 parts, the ground power station which built-in automatic take-up and release winch, and a 50/100-meter aviation cable. The airborne power module is mounted on an M30 battery. The operation interface is simple and clear, with multiple short circuits, overcurrent, and overvoltage protection.
Features;
- Special developed for DJI Matrice 30 drone,
- backpack design, easy to carry,quick-deployed.
- 1500W tethered power supply,1000W air power module on drone end.
- 220V mains power supply, generator power supply.
- Non-destructive installation, plug and play.
- Abnormal state alarm, strong and weak electricity separation design.
- With Matrix lights, high power 450W,50000+ lumens,1500㎡+ lighting area. (pls note, the light is optional )
- Various output interfaces.
– 3 USB 18W charging interface
– 1 channel PD 60W TYPE C
– 2 standard AC220V 3-port waterproof plug
– 1 DC power supply
Specs:
Onboard Power Module (install on the drone end) | |
Size | 100mm*80mm*40mm |
Weight | 200g |
Power | 1000W |
Ground Tethered power station | |
Size | 480mm*380mm*220mm (50M tethered ) 520mm*435mm*235mm (100M tethered) |
Weight | 10Kg |
Power | 1500W |
Tethered cable length | 50M/100M |
Protection function | Over-current protection, over-voltage protection, short-circuit protection, over-temperature protection |
Working Temperature | -20℃-+50°C |
