Description

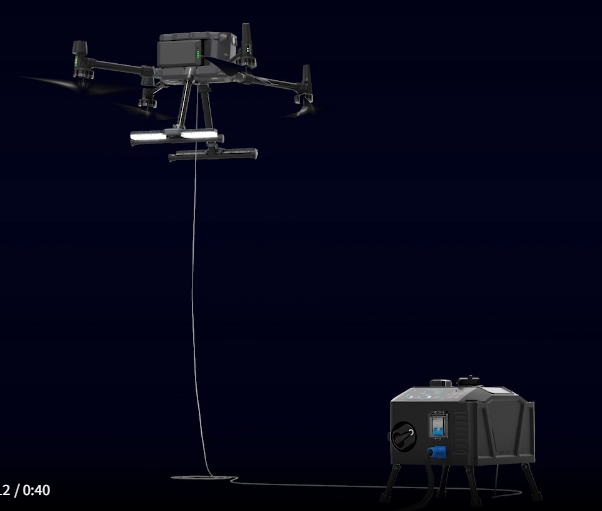

TK3 M350 tethered system, designed specifically for the DJI Matrice 350 drone, is the most up-to-date and portable tethered solution for the M350. This new-generation ground power system further optimizes size and weight, converting 220V AC to 400V high-voltage DC and supplying power to the drone via a nickel alloy cable, enabling 24/7 continuous operation. It supports payloads such as matrix lights, gimbal lights, and gimbal cameras, meeting the needs of long-duration lighting and monitoring in emergency scenarios.
Key features and advantages:
Converts 220V AC to 400V high-voltage DC, enabling 24/7 continuous flight for the drone.
Intelligent warnings and thermal protection: built-in temperature control and fault monitoring ensure stable system operation.
Human–machine interaction and display:
Equipped with a 5-inch high-brightness display, providing real-time information and controls:
Output power
Light switch
Cable winding strength
Power temperature
Fault alerts
Lightweight carrying design:
Total weight approximately 7.5 kg, easy for one person to carry.
Dedicated backpack with custom buckles and large capacity, featuring breathable comfort and ergonomic load distribution for effortless, stable transport.

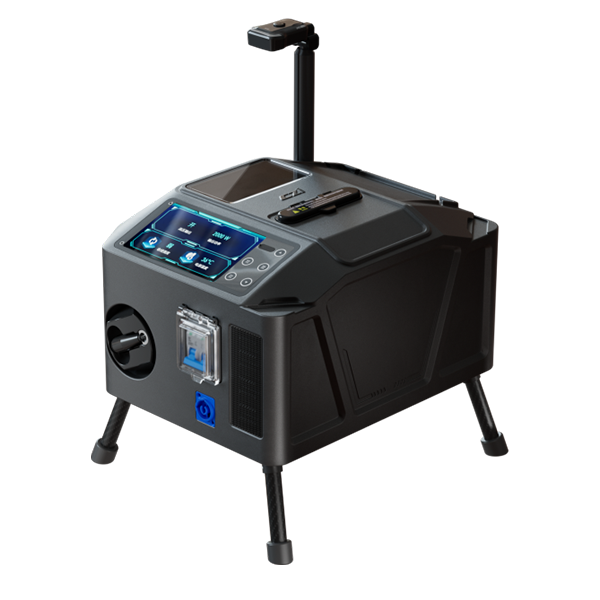

| Ground Power Unit | |
|---|---|
| Dimensions | 356 × 310 × 229 mm |
| Weight | 7.5 kg ±5% |
| Power | ≥ 3000 W (176 Vac–264 Vac input) ≥ 1500 W (90 Vac–175 Vac input) |
| Cable | 80m cable in the tethered grnd station ,30M extension, Diameter < 2.8 mm Overcurrent capacity > 10 A Weight (12 g ±1) g/m Tensile strength > 200 N |
| Input Voltage | 90–264 Vac |
| Operating Frequency | 50/60 Hz |
| Output Voltage | ≥ 400 VDC |
| Operating Temperature | -20 to 40 °C |
| Air Power Unit | |
| Dimensions | 166 × 91 × 69 mm |
| Weight | 566 g ±5% |
| Power | ≥ 3000 W |
| Input Voltage | 400 V |
| Output Voltage | > 45 V |
| Output Current | ≥ 60 A |
