Tethered system for DJI Matrice 300 RTK drone, the tethered system based on DJI M300 RTK drone, the DJI ’s latest and most powerful industrial-grade UAV platform, ensure long time flight for police and military surveillance, monitoring, fire department, achieve 24-hour endurance, mobile deployment, on-site command, remote communication, emergency lighting, real-time monitoring, and laser ranging.
The powerful and smart drone flight platform — DJI M300 RTK greatly assists developers in customizing professional solutions for complex drone industry applications, especially for the power tethered ground station system.
Feature of DJI Matrice 300 RTK.
The Matrice 300 RTK is DJI’s latest commercial drone platform that takes inspiration from modern aviation systems. Offering up to 55 minutes of flight time (by using tethered power ground station, it can achieve 24 hours flight), advanced Al capabilities, 6 Directional Sensing & Positioning, and more, the M300 RTK sets a whole new standard by combining intelligence with high-performance and unrivaled reliability.
The M300 can mount up to 3 payloads simultaneously, with a maximum payload capacity of 2.7 kg. it greatly improves the choice of the application environment, it can mount a different camera or other payloads.
The tethered system for DJI Matrice 300 RTK, application for the fire department and police, military, it mounts the H20, H20T dual camera, optical zoom, and thermal imaging camera,20X optical zoom and radiometric thermal camera 640×512 px , the camera payload with Laser RangeFinder function, also the M300 drone can mount the drone speaker, the LED display, the spotlights.
Feature of DJI M300 drone tethered system ;
- 24/7 operation.
Power supply from the ground powerline tethered system to the M300 flight platform in the air, the generator or commercial power is converted to DC high voltage, which is transmitted to the on-board power supply of the drone through the high-performance nickel alloy power supply cable, converting it to DC 12 S voltage used by the drone, which can continuously power the M300 flight platform, and together with the battery backup, it can achieve 24 hours of continuous operation on the basis of safety.
- Free your hands and work efficiently
Traditional drones are generally controlled by remote control, which has a large learning cost. The tethered drone system is completely controlled by the ground station to take off, land, and change altitude. It will automatically land under abnormal conditions, reducing the difficulty of operator entry. More energy is placed on the use of task payloads. And the tethered UAV system preparation and recovery time is shorter.
- Mobile operation
Thanks to the system’s simultaneous on-board installation, the drone can automatically follow the vehicle’s driving, which improves the system’s maneuverability. Operators can gain control of the aircraft, making task deployment and team collaboration more flexible.
- Do their own job and cooperate perfectly
Based on electric multi-rotor UAV technology, it inherits the advantages of the simple overall structure, few mechanical parts, easy control, and fast response, which is conducive to the improvement of system reliability. The mooring system is perfectly compatible with the drone and does not interfere with the drone’s high frequency, continuity, and normalized cruise operations.
Specification of the Tethered drone system for DJI Matrice 300 RTK.
|drone air power units|
|Installation method||Quick-release buckle design|
|Rated output current||50A|
|Rated output voltage||DC 48-51V|
|Rated input voltage||DC 400-420V|
|Continuous flight time||24H (powerline Tethered )|
|Protection function||In tethered power supply mode, the drone can be normally flying and landing when the power supply is interrupted during the flight|

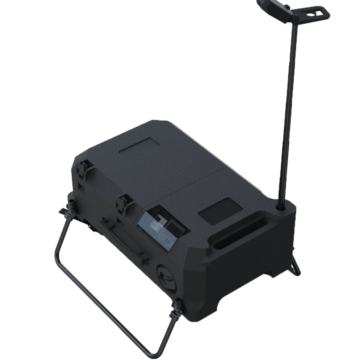

|Ground Power Units|
|Electric composite cable Length||0-120m|
|Rated input voltage||AC 220V|
|Input voltage range||AC220.0+10%V|
|Rated output voltage||DC 400-430V|
|Max output current||7A|
|Rated output power||＞2000W|
|Function||The ground power supply has manual and automatic integrated take-up function, which is convenient, efficient & convenient.|
