TK300 Tethered system for DJI M300 Drone, it is the world’s first portable tethered power station, weight only 13Kg, backpackable, easy to use, quick deployment, single-person can be carried on the back, protection class IP54. Intelligent function monitoring and display.
The DJI M300 drone tethered system can converts single-phase or three-phase AC power into DC high voltage, and transmits it to the onboard power supply through a high-performance nickel alloy power supply cable to continuously supply power to the drone. Combined with the use of backup batteries, it can achieve a max of 24 hours of continuous operation on the basis of ensuring a safe flight.
The TK300 tethered system includes two parts, the on-board power supply which installs on the drone, and the manual-automatic integrated ground power station. Among them, the manual and automatic winding machines integrate ground power supply, high-performance power supply cables, and automatic winch devices. The highly integrated ground power supply system not only provides portability, but also ensures that the automatic winding functions of 100-meter cables can be quickly executed, and can also reduce the impact and bending of the cable, which is a protective cable.
Features;
- Tethered system compatible with DJI Matrice 300 RTK

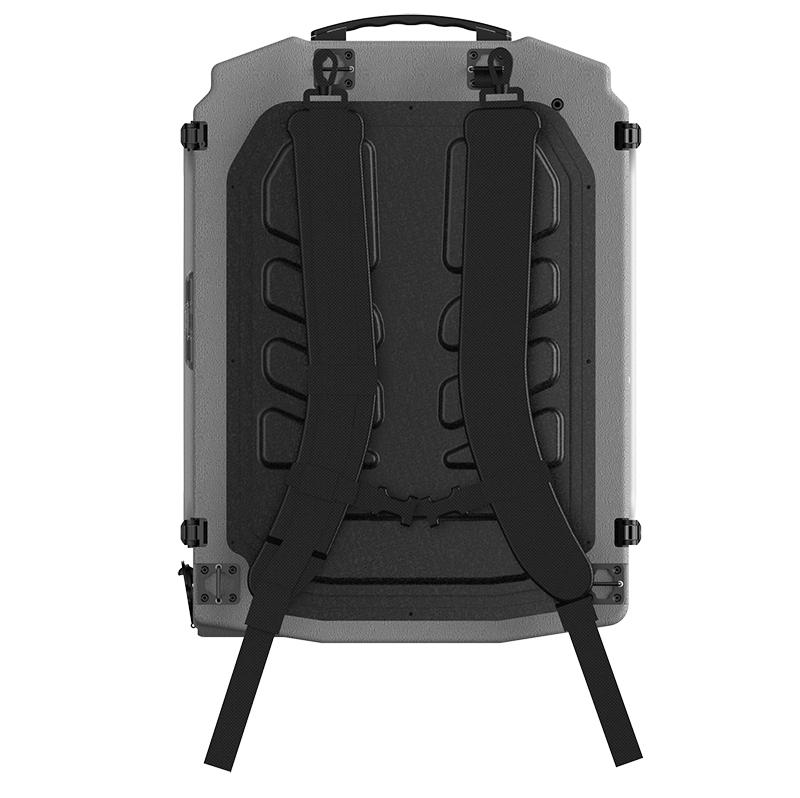

- Portable, Backpackable, only 13Kg,
- IP54 protection class,
- easy to use, quick deployment.
- manual-automatic integrated winch system
- Voltage and current overload protection

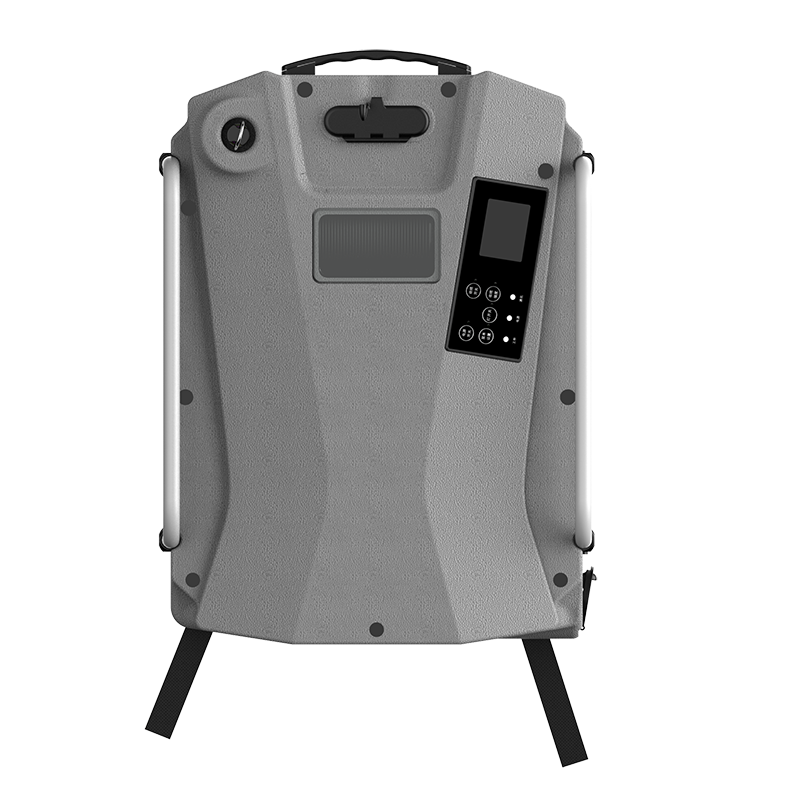

- Intelligent real-time monitoring of system working status.
- Safe and efficient.
Specs ;
Onboard power supply (Drone End) | |
Size | 134mm×92mm×97mm |
Weight | 515g |
Material | Aviation aluminum alloy |
Power | 3KW |
Rated input voltage | 280-420 VDC |
Rated output voltage | 36.5-52.5 VDC |
Output current | 60A |
Protection | Overcurrent protection>65A Over-voltage protection>430V |
Output short circuit protection | |
Over-temperature protection >80 ℃ | |
Control and interface | Independent control link LP12 aviation waterproof connector Dedicated three-core MR60 lighting interface |

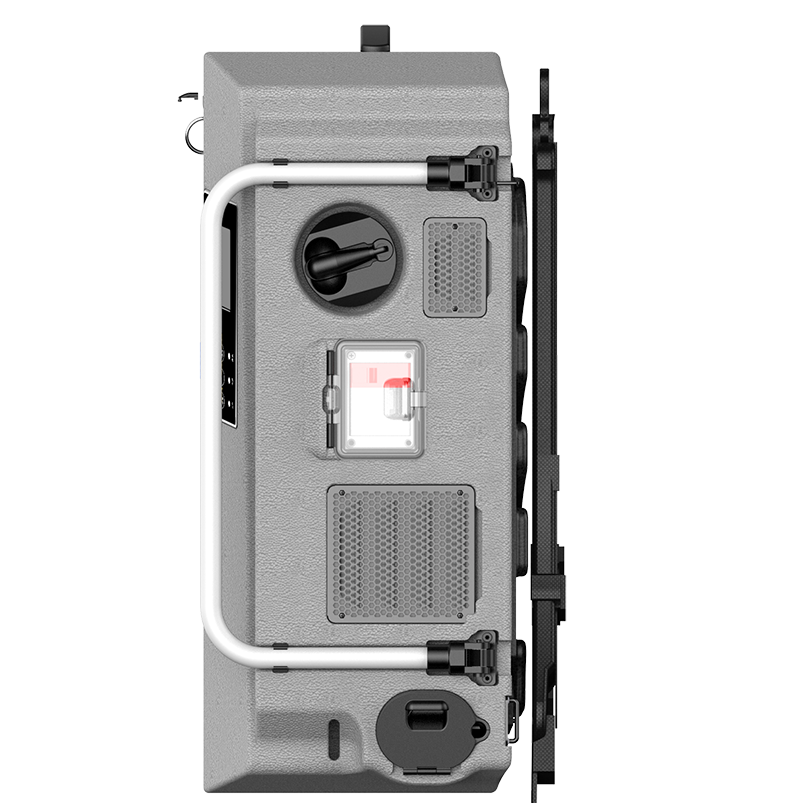

Ground Power Station | |
Size | 560mm×390mm×260mm |
Weight | 13Kg |
Power | 3KW |
Cable | 110m cable (coaxial two-core cable) The cable diameter is less than 3mm. Over-current capacity is more than 10A. Weight less than 1.2kg/100m, Tensile strength is more than 20kg. Withstanding voltage 600V Internal resistance less than 3.6Ω/100m@20℃ |
input voltage | 220 VAC+10% |
output voltage | 280-430 VDC |
Working frequency | 50/60 Hz |
Working temperature | -20° to 55° |
