Description

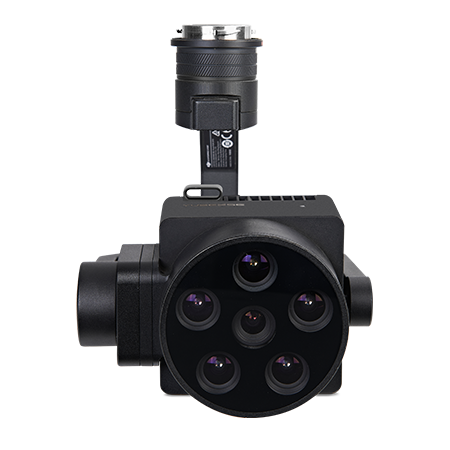

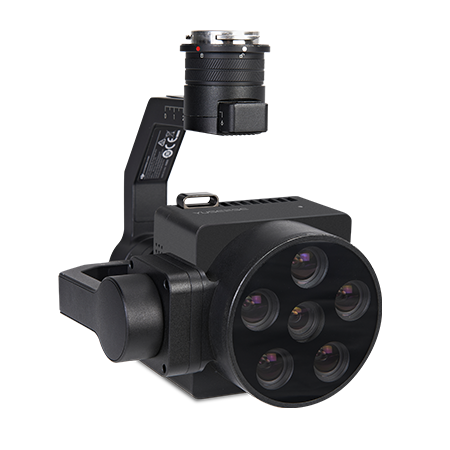

DJI M350 Drone Multispectral Camera: this multispectral camera features 5 channels of 3.2M pixels and 1 channel of 12.3M pixels RGB. It has a sapphire optical window, large aperture, low distortion, broadband transmission, and an all-glass lens. The aluminum alloy body ensures durability, while video-grade detection and output capabilities meet the demands of precision agriculture, forestry monitoring, river and lake ecology, target recognition, and various other applications.
Product Features:
- 5 Multispectral Channels & 1 RGB Channel
- 3.2 Million Pixels & 12.3 Million Pixels
- 12-bit Global Shutter & 8-bit Rolling Shutter
- Controlled via DJI Pilot
- All Channels Sync Imaging in Just 1 Second
- Onboard Real-Time Spectral Inversion and Video Output
- Includes Standard Downward Light Sensor (DLS)
- Powered by DJI X-Port, with 128G Solid-State USB Drive
- Multiple Trigger Modes: Timer and Overlap Rate

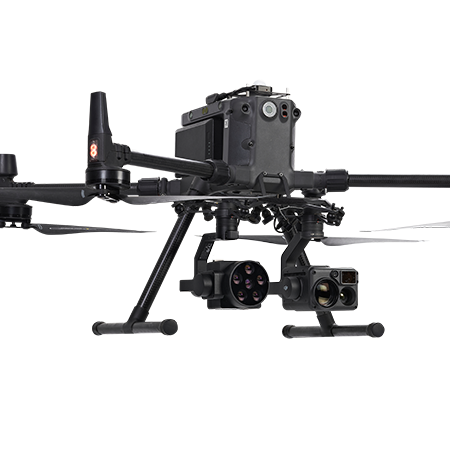

- Custom Designed for DJI M300/M350 RTK Drones, Plug and Play
Specs:
| Parameter | Specification |
|---|---|
| Configuration | 5 multispectral channels + 1 RGB channel |
| Sensor Size | Multispectral: 1/1.8”; RGB: 1/2.3” |
| Effective Pixels | Multispectral: 3.2Mpx; RGB: 12.3Mpx |
| Shutter Type | Multispectral: Global; RGB: Rolling |
| Quantization Bit Depth | Multispectral: 12bit; RGB: 8bit |
| Field of View | Multispectral: 48.8°×37.5°; RGB: 47.4°×36.4° |
| Ground Resolution | Multispectral: 5.28cm@h120m; RGB: 2.60cm@h120m |
| Coverage Width | Multispectral: 109m×82m@h120m; RGB: 106m×79m@h120m |
| Spectral Channels | 450nm@30nm, 555nm@27nm, 660nm@22nm, 720nm@10nm, 840nm@30nm, RGB |
| Optical Window | Sapphire optical glass window |
| Main Unit Size | ≤130mm×160mm×165mm (optical axis vertical to ground) |
| Main Unit Weight | ≤780g |
| Mounting Interface | X-Port |
| Power Supply | X-Port |
| Power Consumption | ≤35W |
| Image Format | Multispectral: 16bit raw TIFF & 8bit reflectance JPEG; RGB: 8bit JPEG (includes GPS and ambient light information) |
| Video Format | MP4 |
| Storage Medium | Standard 128G, maximum support for 2T USB3.1 storage devices |
| Parameter Setting | DJI Pilot |
| Shooting Trigger | Overlap trigger, timer trigger |
| Shooting Frequency | Photo mode: 1Hz (related to actual read/write speed of storage medium); Video mode: 20Hz |
| Operating Temperature | -10℃~+50℃ (relative wind speed ≥1m/s) |
| Storage Temperature | -30℃~+70℃ |
| Humidity | RH(%)≤85% (non-condensing) |
| Product Certification | CE, FCC, RoHS |
