Heavy-lift High Power optical fiber tethered drone system

Description

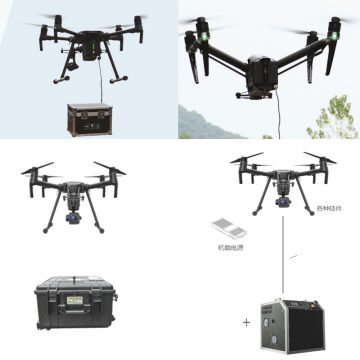

Heavy-lift High Power fiber optic tethered drone system supports the drone with a max take-off weight of 20-30Kg, Airborne (Drone air power module ) power supply max 6KW, This optical fiber tethered system is a high-performance tethered drone system designed for long-duration, high-load flight missions. The system supports flight altitudes of more than 100 or even 200 meters and can carry 20 to 30Kg of weight. Through a tethered power supply, it can achieve more than 24 hours of continuous flight, and long-term hovering of drones in the air and transmit high-speed, high-bandwidth data signals through optical fiber to the ground. suitable for a variety of harsh environments and mission requirements.

Features:

• Support drone platform: Supports takeoff weight of 20~30kg, supports flight altitude ≥100/200m (Customized cable length).
• Tethered Power Supply, Ultra-long Endurance: Supports continuous flight duration of no less than 24 hours, with constant voltage power supply from air power units. No power loss or charge-discharge phenomena were observed in drone backup batteries.
• Automatic Cable Management, Easy Operation: Automatically manages cable retraction (adaptive tension), eliminating the need for manual tethering equipment operation throughout the entire takeoff and landing process, freeing users to focus on their tasks.

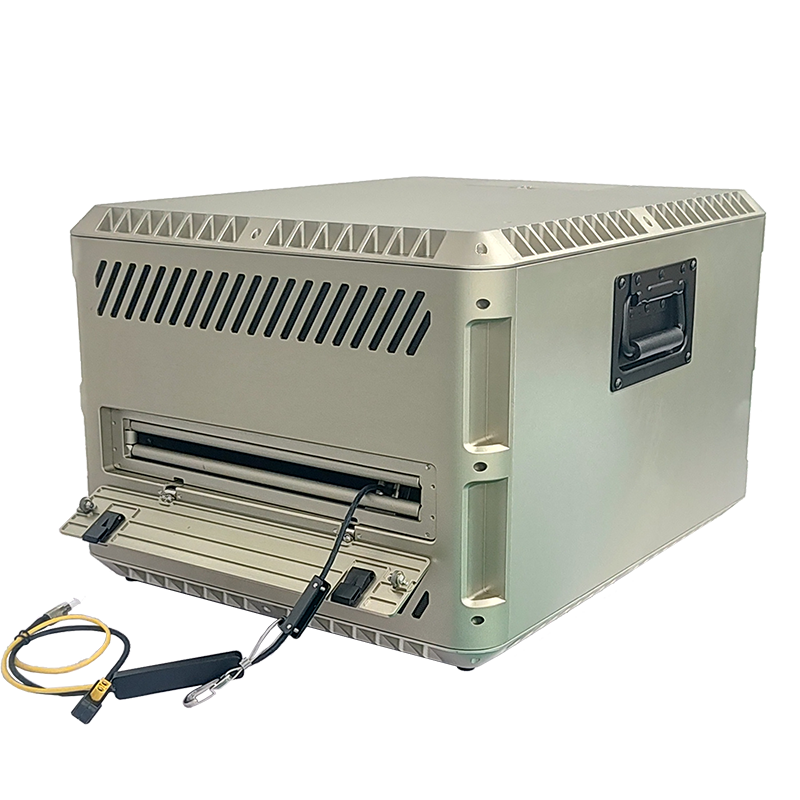

• High Protection, Strong Environmental Adaptability: The air power units have an IP55 protection rating, and the tethering ground power station has an IP45 protection rating, allowing for application in normal rainy or snowy weather conditions and adapting to various operational environments.
• Data Display: Displays voltage, current, power, temperature, cable length, operating time, power consumption, etc. Settings and Adjustment:
• Supports setting and adjustment of parameters such as tension, speed, voltage, etc., and supports multiple language options.
• Alarms and Reminders: When a fault occurs, the screen displays the fault content, and the buzzer provides a loud reminder.
• Comprehensive Protection Features: The design includes strong and weak electrical isolation, and comprehensive input-output protection functions against overvoltage, undervoltage, overcurrent, short circuit, over temperature, etc. Faults are automatically resolved with self-recovery capability.
• Aircraft-grade aluminum alloy material, CNC high-precision milling process, aesthetically pleasing appearance, while also considering various functional detail designs.
