Description

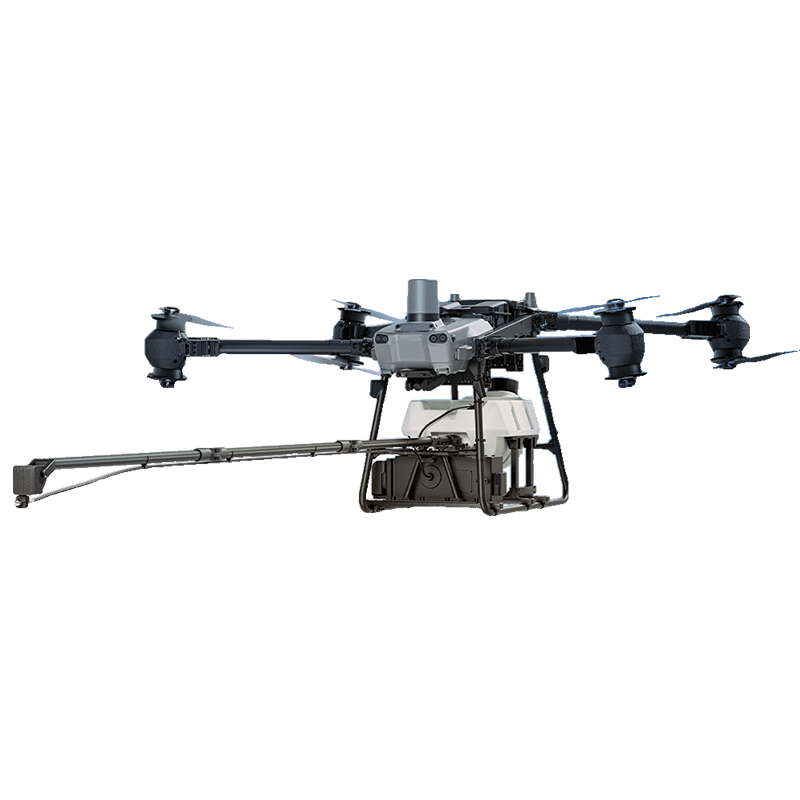

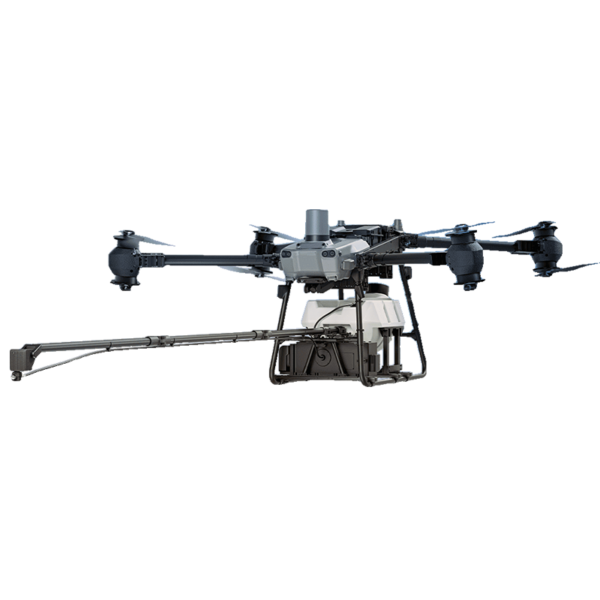

Drone-based high-pressure spray cleaning system is an advanced cleaning solution designed specifically for industrial drones. Its exceptional performance and flexibility greatly enhance the efficiency and safety of high-altitude cleaning operations. This system is ideal for high-altitude cleaning applications in various industries, including wind turbine blades, photovoltaic panels, power line insulator strings, buildings, high-rise building facades, and towers.
Features:
- High Efficiency and Flexibility

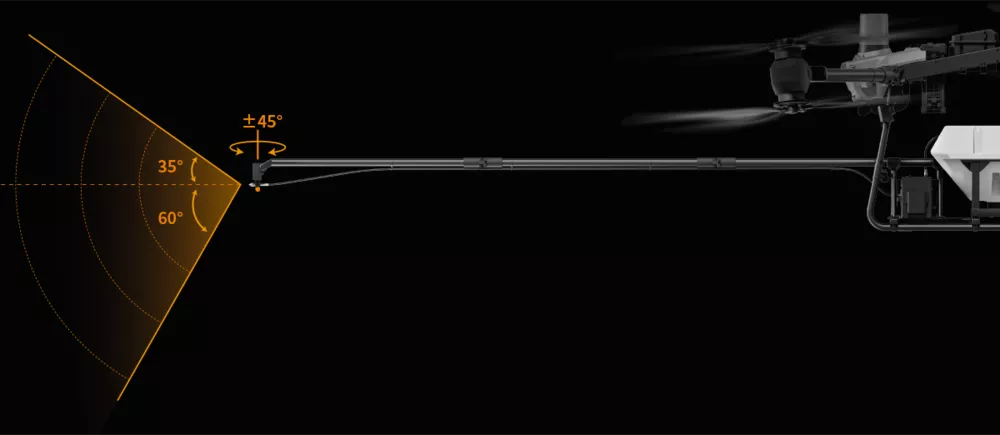

- Multi-Angle Adjustment: The end nozzle offers a vertical adjustment range from -60° to +35° and a horizontal adjustment range of ±45°. This wide angle adjustment capability ensures that the cleaning operation can cover various complex shapes and challenging surfaces, such as the tips and bases of wind turbine blades.
- Automated Cleaning Path Planning: Integrating advanced path planning technology, the system automatically adjusts the spray gun path, enabling uniform and efficient sweeping operations, reducing manual intervention, and improving cleaning quality.
- Ease of Use and Portability
- Foldable Design: The spray gun module is compact and foldable to a length of 1 meter, making it easy to store in small spaces and transport. This design also facilitates quick deployment and response to urgent cleaning tasks.
- Fully Automated Workflow: The cleaning operation is tightly integrated with the drone’s flight path planning, achieving fully automated control from takeoff to landing, significantly reducing operational difficulty and improving work efficiency.
- Large Capacity and Efficient Operation
- 30L Large-Capacity Water Tank: The large capacity allows the system to cover extensive areas in a single operation, reducing the frequency of water tank replacements and enhancing continuous operation capabilities. Additionally, the quick liquid exchange function ensures uninterrupted cleaning operations, further boosting efficiency.
- Quick Cleaning During Hovering: While the drone is in a hovering state, the system’s flexible angle adjustments at the end enable rapid, efficient high-pressure cleaning of large areas, particularly suited for scenarios requiring precise control over the cleaning range and intensity.
- Safety and Intelligence
- Seamless Flight Control Integration: The system seamlessly integrates with flight control systems like DJI FC30, allowing single-person control of both the drone and spraying operations, simplifying the workflow and enhancing operational safety.
- No Manual High-Altitude Operations: Remote control of the drone enables the completion of high-altitude cleaning tasks, completely eliminating the safety risks associated with traditional high-altitude work.
- Real-Time Laser Distance Measurement: The system displays the working distance in real-time, ensuring that the cleaning operation occurs within the optimal spraying distance, improving cleaning effectiveness while ensuring the safety of the drone and the operational area.
- Modular and Customizable
- Modular Nozzle Design: The system offers a variety of nozzle options that can be replaced based on specific operational needs, meeting the cleaning requirements in different complex high-altitude environments.
- Support for Custom Integration with More Flight Platforms: The system supports custom integration with other flight platforms, providing industry users with more flexible and diverse solutions.
- Specs:
Item Specification Weight 13 kg Power 900 W Spray Module Length 2.5 m Max. Spraying Distance 6 m Pump Pressure 1~4 Mpa Max. Flow Rate 5 L/min Capacity 30 L Protection Rating IP55 Nozzle Rotation Range (Horizontal) -45°~ 45° Nozzle Rotation Range (Vertical) -60°~ 35° Control Method Integrated Flight Control Quick-change Nozzles Supported Liquid Level Indicator Supported Distance Detection Supported
