Description

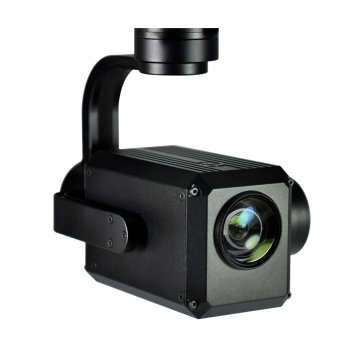

The 10x Zoom 4K Gimbal Camera is a professional-grade UAV gimbal camera, designed for high-quality video capture and stable shooting in demanding applications. Built-in AI can identify and track vehicles and personnel.
- Military-Grade Design:
– Aerospace Aluminum: Precision machined for high strength and vibration absorption, reducing external impact on image quality.
– Environmental Resistance: Waterproof, dustproof, and corrosion-resistant, suitable for harsh outdoor environments. - Exceptional Stability:
– 3-Axis Gimbal: Advanced design with high-speed processor control, achieving a steady-state frequency of 1250HZ for smooth footage even in rough conditions.
– Precise Control: Compensates for minor movements to maintain preset angles, enhancing video quality. - High-Performance Camera:
– 4K Resolution:** Custom SONY sports camera supports 4K@25FPS and 2.5K@30FPS for high-definition recording.
– Advanced Vision Technology:** Motion visual focusing algorithm and real-time HDR for accurate focus and vibrant color reproduction. - Zoom Capabilities:
– Stable Zoom: 12x stable, lossless zoom with a max focal length of 58.8MM.
– Hybrid Focus: Up to 40x effective hybrid focus extending to 196MM, ideal for surveillance and detail capture. - Target Coordinate Positioning:
– 3D Visual Positioning: Calculates latitude, longitude, elevation, and distance in real-time, transmitting data via serial and network ports. - Quick Release Design:
– Trigger-Lock: Innovative structure for rapid installation and removal, enhancing connection strength and operational efficiency. - Built-in AI Processing: Advanced AI Chip: 22NM quad-core 2.0GHZ AI chip with automatic detection and recognition of typical targets like vehicles and personnel, supporting multiple simultaneous detections and tracking modes.
Specs
| Gimbal Camera Body | |
| Material | aviation aluminum alloy |
| Size | 103×103×153.5mm |
| Weight | 490g |
| Operating temperature | -20°C~50°C |
| Protection level | IP43 |
| stabilization axes | 3 Axis gimbal |
| Input voltage | 12-52V (4S-12S) |
| Power | 21.6W |
| Control angle range | 360(Heading); -120°~30°(Pitch) |
| Maximum control speed | Pan: 90°/s, Tilt: 90°/s |
| Control signal | S.BUS, TTL serial communication, TCP |
| Mode | Direction lock; heading follow; camera facing down |
| 10X Optical Zoom Camera | |
| Sensor | 1/2.8 inch SONY CMOS |
| focal length | 4.9～49.0mm(10x) ,58.8mm(12x)、196mm(40x) |
| Zoom factor | 10X Optical Zoom 40X hybrid zoom |
| Focusing speed | <1S |
| Video output format | MP4(2560×1440@30fps、3840×2160@25fps、 1920*1080@60fps、1280*720@120fps、) |
| Maximum Pictures | JPG(3648*2052) |
| Effective Pixels | 2.13MP |
| Minimum object distance | 10mm (wide-angle end) to 1200mm (distal) |
| Night vision level | Starlight |
| AI Chip | |
| AI Chip | 22NM quad-core 2.0GHZ |
| Function | identify and track vehicles and personnel. |
