Drone plays a very important role in air monitoring.it is a fast, efficient and convenient way for gas detection. Drone air monitoring sensors and HD cameras that mounted to the DJI Matrice 210 that used to detect the air quality and pollution index, pollution location, generate air quality and pollution distribution map, at the same time, take photos and videos of places where the air quality exceeds standards, help to find the source of pollution and harmful gas leak.
The air monitoring sensor is perfectly developed on DJI Payload SDK (PSDK), which can be compatible with DJI 210/M210 RTK drone, also work with DJI Matrice 300 drone, the drone gas detector powered by DJI PSDK, sharing UAV location GPS and time information, via DJI Pilot App, you can do route planning and flight control, also can view the working status and monitoring index of the air in real-time.
The DJI Matrice 210 air monitoring sensor can detect the elements included the PM2.5、PM10、CO、NO2、O3、SO2、VOC， CH4、H2S、HCL, flammable and explosive, temperature and humidity.
The DJI drone gas detection sensor solution list as below
- DJI Matrice 210 Drone Platform.
- Air monitoring sensor.
- 4K Drone camera or 30X optical zoom camera
- Air monitoring analysis software
Air Monitoring sensor working Proces
1:Setting the drone flying area, the area that needs to do the UAV air monitoring.setting the flight route by using the DJI Pilot .automatically flight, of course, you can operate the drone by the remote controller also.
2:In the set monitoring area, the drone equipped with air detection sensors is flying, real-time monitoring the air quality in the flight area, the data is transmitted to the ground station(PC or pad via DJI remote controller), also you can transfer the data via 4G network to the command center or the cloud, the same time, via the software, the air quality index and the geographical coordinates is generated in real-time.
The different colors indicated the air quality index, green color is good condition, the yellow color is means the air quality slightly exceeds the normal standard, the red color is air quality is bad, this is the pollution area.
The DJI M210 Drone gas detector software shows the air quality data in real-time, contains the air pollution data, location (GPS Map), Longitude, latitude, height, time all information is shown in the software, provides an efficient guarantee for harmful gas analysis.
The drone is flying to detect the Air quality condition of the setting area, analyze the data via software, generating the air quality index, find the air problem and the source of pollution. it is a powerful way of drone air environment monitoring.
The Pictures below show the process of drone Air environment monitoring.
Check the following video of DJI Matrice 210 drone gas detector

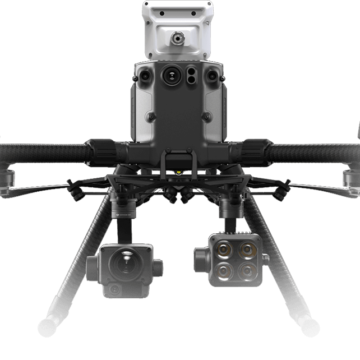

Now it works for DJI Matrice 300 drone, the air quality monitor sensor mount to the DJI M300 drone, real-time detect the ambient elements PM2.5, PM10, SO2, CO, NO2, O2, O3, VOCs, CH4, CO2, H2S, NH3, HCl, H2, Cl2, PH3, and more, drone-based air quality analyzer can be used to sample and analyze the ambient condition, pollution monitoring, and harmful gas source tracking.
