DJI Agras T30 Price and specs

owensong
Friday, 13 August 2021 / Published in Uncategorized

DJI Agras T30 Price and specs

The DJI T30 is the biggest agriculture spraying drone that DJI has released till now, we can supply the T30 now, ship to worldwide at a very good price, the specs are very detailed here below, With a 30-liter spraying tank, the DJI Agras T30 takes aerial spraying efficiency to new heights. A revolutionary transforming body enables more effective spraying, especially for fruit trees. Using DJI digital agriculture solutions, the T30 helps reduce fertilizer use and increase yield with effective, data-driven best practices.

DJI Agras T30 Price

For the DJI T30 Price, we can offer a very good price, we supply a full set package: DJI Agras T30 Drone + 4 battery + Smart Charger (battery charging station ), for the price, pls contact : info@uavfordrone.com

We ship to worldwide by air , air express, by sea , by air 7-10 days , by air express 3-7 days, by sea 15-30 days ,

A New Flagship for Digital Agriculture

Main Feature:

  • 30L Spray Tank, this is the biggest tank that DJI release to the market till now, load more pesticides, save time.
  • Branch-Targeting Technology for Thorough Penetration,the Agras T30 penetrates thick canopies with oblique spraying, ensuring an even application of liquid pesticides and doubling the number of droplets. [1] With the help of the Smart Agriculture Cloud Platform and cloud-based mapping, users can manage a 3D digital orchard, making it easy to get started with digital agriculture.
  • 16 spray nozzles provide extensive coverage with even distribution, strong penetration, and exceptional drift prevention.
  • The T30 is equipped with a 30 kg large liquid tank, the optimal spray width is increased to 9 meters, the field spraying efficiency reaches 40 ACRE/H, and the efficiency is increased by 33.3%.
  • The new spherical radar system can perceive obstacles and the surrounding environment in all environments, all weather, and all angles, without fear of dust and light intrusion. It has the functions of automatically bypassing obstacles and imitating ground to fully ensure the safety of operations.
  • The DJI Agras T30 is equipped with dual FPV cameras, and the front and rear vision is clear at a glance, and you can see the flight status without turning. At the same time, the high-brightness searchlight doubles the night vision effect, illuminates your flying defense road at night, and has more night operations.
  • The control module adopts a fully enclosed structure, with three layers of protection for the core components, and the protection level of the whole machine is IP67. No fear of chemical liquids, dust, fertilizers, dustproof, waterproof, corrosion-resistant, strong and durable.
  • The new intelligent route mode can independently plan the best route for each operation. Cooperate with continuous level gauge, real-time grasp the remaining medicine quantity, predict the changing point, and realize the optimal medicine-electricity matching. Automatic edge sweeping, more comprehensive spray coverage, easier plant protection operations.
  • The new remote control brings 5 kilometers of stable image transmission, which is 67% higher than the previous generation[4]. The signal communication ability is enhanced, the anti-interference ability is outstanding, and the operation is more stable. One control multiple machines, double the efficiency. Standard RTK high-precision positioning module, easy to achieve cm-level operation planning. The 5.5-inch high-brightness screen allows you to see the screen clearly even under the scorching sun. The new DJI Agriculture APP, the system runs smoother and the operation is simpler.

Video Introduction of DJI Agras T30, DJI 30L agriculture drone

The DJI Agras T30 Specs.

Feature

  • Hourly work efficiency : 40 acres
  • High-precision radar :√ Spherical Omnidirectional Radar System
  • Remote control planning accuracy: √ (RTK/GNSS)
  • Pipe air exhaust: √ One button Air Discharge
  • 3D operation planning by the AI smart engine √
  • High-precision flowmeter :√ (Dual-channel electromagnetic flowmeter with an error of ±2%)
  • Level gauge : Continuous level gauge (with real-time pesticide load detection and intelligent supply-point prediction)
  • Maximum spray flow : 7.2L/min (with the XR11001 nozzle)
    8L/min (with the XR110015 optional nozzle)
  • Pesticide tank installation method : Fixed pesticide tank
  • Battery installation method :Removable batteries
  • Single remote control for multiple drones : √ (Single remote control for up to three drones)
  • D-RTK technology : √
  • Top-view radar module : √
  • Flight laser function :√
  • Intelligent endurance/return function :√
  • Intelligent supply-point prediction :√
  • Front-view FPV :√
  • Rear-view FPV :√
  • Coordinated turning function :√
  • Branch targeting technology :√

Drone parameters

  • Total weight (without batteries) : 26.4 kg
  • Maximum take-off weight : 76.5 kg (near sea level)
  • Maximum thrust-to-weight ratio : 1.70 @ takeoff weight of 66.5 kg
  • Hovering precision (with good GNSS signal) :With D-RTK enabled:
    ±10 cm (horizontal) and ±10 cm (vertical)
    With D-RTK disabled: ±0.6m (horizontal) and ±0.3m (vertical) (with the radar function enabled: ±0.1m)
  • RTK and GNSS frequency bands: RTK: GPS L1/L2, GLONASS F1/F2, BeiDou B1/B2, and Galileo E1/E5
    GNSS: GPS L1, GLONASS F1, and Galileo E1
  • Maximum power consumption :11,000 W
  • Hovering power consumption :10,000 W (@ takeoff weight of 66.5 kg)
  • Hovering endurance : 20.5min (@29,000 mAh & takeoff weight of 36.5 kg)
    7.8min (@29,000 mAh & takeoff weight of 66.5 kg)
  • Maximum pitch angle :15°
  • Maximum operating flight speed :7 m/s
  • Maximum level speed :10 m/s (with good GNSS signal)
  • Maximum tolerable wind speed: 8 m/s
  • Maximum flight altitude :4,500m
    *Reduce the pesticide load by 12% for each increase of 1,000 meters in altitude.
  • Recommended operating ambient humidity : < 93%
  • Recommended operating ambient temperature :0℃ to 45℃

Chassis parameters

  • Maximum rotor distance :2,145 mm
  • Dimensions
    • 2,858 mm × 2,685 mm × 790 mm (with arms and blades unfolded)
      2,030 mm × 1,866 mm × 790 mm (with arms unfolded and blades folded)
      1,170 mm × 670 mm × 857 mm (with arms folded)

Power system – Motor

  • Stator size :100×18 mm
  • KV value :77 rpm/V
  • Maximum pull :18.7 kg/rotor
  • Maximum power : 3,600 W/rotor
  • Weight :756 g

Power system – Propellers

  • Diameter × pitch :38×20 inch
  • Weight (with a single blade) :106 g

Power system – ESC

  • Maximum operating current (continuous) :60 A
  • Maximum operating voltage :60.9 V (14S LiPo)

FPV cameras

  • View angle (FOV) :Horizontal: 129°, vertical:82°
  • Resolution : 1,280×720 15-30 fps

FPV searchlights

  • Maximum light intensity :13.2 lux @ 5-meter direct light

Spraying system – Operation tank

  • Operation tank volume :30L at full load
  • Operating load :30 kg at full load

Spraying system – Nozzles

  • Nozzle model
    • SX11001VS (standard)
      SX110015VS (optional)
      Fruit tree drones: TX-VK04 (optional)
  • Nozzle quantity : 16
  • Maximum spray flow : SX11001VS: 7.2L/min
    SX110015VS: 8L/min
    TX-VK4:3.6 L/min
  • Atomized particle size : SX11001VS : 130 – 250 μm
    SX110015VS : 170 – 265 μm
    TX-VK4: 110 – 135 μm
    (depending on the actual operating environment, spray flow, and other factors)
  • Maximum effective spray width : 4-9 m (with 12 nozzles and a distance of 1.5 to 3 meters to crops)

Spraying system – Water pump

  • Water pump model:Plunger pump
  • Operating voltage:60 V
  • Maximum flow: 4 L/min ×1

Spraying system – Flowmeter

  • Flow measurement range :0.25 – 20 L/min
  • Flow measurement error: < ±2%
  • Measurable liquid : Conductivity > 50 μS/cm, typical liquids: Tap water or aqueous organic or inorganic pesticides

Omnidirectional obstacle avoidance radar

  • Model :RD2424R
  • Operating frequency : SRRC/NCC/FCC: 24.05 – 24.25 GHz
    MIC/KCC/CE: 24.05 – 24.25 GHz
  • Operating power consumption: 12 W
  • Equivalent isotropic radiated power (EIRP) :SRRC: < 13 dBm; NCC/MIC/KCC/CE/FCC:< 20 dBm
  • Height maintenance and terrain adaptation: Height measurement range: 1-30 m
    Height-maintenance range: 1.5-15 m
  • Maximum slope in mountain mode: 35°
  • Obstacle avoidance system
    • Perceivable distance: 1.5-30 m
      View angle (FOV): Horizontal: 360°, vertical: ±15°
      Conditions of use: The relative altitude of the drone must be greater than 1.5 m and the speed less than 7 m/s
      Safety distance: 2.5 m (the distance between the tip of the propeller and the obstacle after the drone decelerates to a hover)
      Obstacle avoidance direction: Horizontally omnidirectional obstacle avoidance
  • Water-resistance rating: IP67

Top-view radar

  • Model : RD2414U
  • Operating frequency :SRRC/NCC/FCC:24.05 – 24.25 GHz
    MIC/KCC/CE:24.05 – 24.25 GHz
  • Overhead obstacle avoidance
    • Perceivable distance: 1.5-10 m
      View angle (FOV): 80°
      Conditions of use: During take-off, landing, and climbing when the relative distance between the drone and the object above is greater than 1.5 m
      Safety distance: 2 m (the distance between the highest point on the top of the drone and the obstacle after the drone brakes and hovers stably)
      Obstacle avoidance direction: Above the drone
  • Water-resistance rating : IP67
  • Equivalent isotropic radiated power (EIRP)
    • SRRC:< 13 dBm; NCC/MIC/KCC/CE/
      FCC:< 20 dBm
  • Operating power consumption : 4 W

Battery

  • Model : BAX501-29,000mAh-51.8V
  • Weight: Approximately 10.1 kg
  • Discharge rate :11.5C
  • Water-resistance rating: IP54 with board-level potting protection
  • Capacity: 29,000 mAh
  • Voltage: 51.8 V

Remote control

  • Model: RM500-ENT
  • Operating frequency of the Ocusync Industry Edition
    • 2.4000 – 2.4835 GHz
      5.725 – 5.850 GHz
  • Effective signal range at the Ocusync Industry Edition operating frequency (without interference and blockage)
    • SRRC: 5 km; MIC/KCC/CE: 4 km; FCC: 7 km
      (measured when the operating height of the drone is 2.5 m)
  • EIRP of the operating frequency of the Ocusync Industry Edition
    • 2.4 GHz
      SRRC/CE/MIC/KCC: 18.5 dBm;
      FCC: 29.5 dBm;
      5.8 GHz
      SRRC: 20.5 dBm;
      FCC: 28.5 dBm
      CE:12.5 dBm
  • Wi-Fi protocols
    • Wi-Fi Direct, Wireless Display, and 802.11a/g/n/ac
      Supports 2 × 2 MIMO Wi-Fi
  • Wi-Fi operating frequency
    • 2.4000 – 2.4835 GHz
      5.150 – 5.250 GHz
      5.725 – 5.850 GHz
  • Wi-Fi EIRP
    • 2.4 GHz
      SRRC/CE: 18.5 dBm; FCC/MIC/KCC:20.5 dBm;
      5.2 GHz
      SRRC/FCC/CE/MIC: 14 dBm; KCC: 10 dBm;
      5.8 GHz
      SRRC/FCC: 18 dBm; CE/KCC: 12 dBm;
  • Bluetooth protocol : Bluetooth 4.2
  • Bluetooth operating frequency :2.4000 – 2.4835 GHz
  • Bluetooth EIRP: SRRC/MIC/FCC/CE/KCC:6.5 dBm
  • Positioning :GPS+GLONASS dual mode
  • Display screen :5.5-inch screen with a resolution of 1920×1080, brightness of 1,000 cd/m², and Android OS
  • Operating memory (RAM): 4GB LPDDR4
  • Storage space (ROM) : A microSD card with 32 GB and extensible storage space for up to 128 GB, transfer speed rated as UHS-I Speed Grade 3
  • HDMI : HDMI 1.4
  • Supported drones: T30 and T10 agricultural drones
  • Operating power consumption: 18 W
  • Operating ambient temperature: -10℃ to 40℃
  • Storage ambient temperature
    • -30℃ to 60℃ (within 1 month)
      -30℃ to 45℃ (more than 1 month and less than 3 months)
      -30℃ to 35℃ (more than 3 months and less than 6 months)
      -30℃ to 25℃ (more than 6 months)
      (with built-in batteries charged to 40% to 60%)
  • Charging ambient temperature: 5℃ to 40℃

Built-in batteries of the remote control

  • Built-in batteries : 18650 lithium-ion battery (5,000 mAh at 7.2V)
  • Battery life: 2 hours
  • Charging method: Use a standard 12V/2A USB fast charger
  • Charging time:2.5 hours (use the 12V/2A USB fast charger when the remote control is powered off)
  • Power supply current/voltage of the remote control USB-A port: 5 V / 1.5 A

External smart battery of the remote control

  • Model: WB37-4,920mAh-7.6V
  • Battery type: 2S LiPo
  • Capacity: 4,920 mAh
  • Voltage: 7.6 V
  • Capacity:37.39 Wh
  • Charging ambient temperature: 5℃ to 40℃
  • Battery life: 2 hours

Charging assistant of the remote control external smart battery

  • Model:WCH2
  • Input voltage:17.3 – 26.2 V
  • Output voltage and current: 8.7V and 6A
  • Operating ambient temperature: 5℃ to 40℃

Power adapter of the external smart battery charging assistant

  • Model: A14-057N1A
  • Input voltage: 100 – 240V and 50/60 Hz
  • Output voltage: 17.4 V
  • Rated power: 57 W

T30 Spreading System 3.0

  • Spreading system weight: 3.9kg
  • Maximum opening area: 44.6 cm²
  • Applicable materials: Solid dry particles with a diameter of 0.5 to 5 mm
  • Spreading tank volume: 40L
  • Maximum load of the spreading tank: 35kg
  • Water-resistance rating: IP67
  • Input voltage
    • Power: 60V
      Control:15V
  • Maximum power
    • 60V@250W
      15V@50W
  • Recommended operating ambient temperature :0℃ to 40℃
  • Dimensions: 560×435×320mm
  • Maximum rotation speed: 1,300 RPM

T30 smart charging manager

  • Dimensions: 300×280×230 mm
  • Total weight: 11.5 kg
  • Input voltage: 100-264 Vac
  • Output voltage: 40-60 V
  • Rated power: 7,200
  • Charging current:120 A
  • Charging time: Fully charges a battery in 9 to 12 minutes
  • Charging voltage accuracy:+/-0.1 V
  • Charging current accuracy:+/-1 A
  • Output channel quantity:2
  • Protection functions
    • Over-temperature, over-voltage, under-voltage, short-circuit, and fan stall protection
  • Charging ambient temperature: -20℃ to 45℃
  • Charging safety :AC wire protection, power wire protection, and charge connector protection
  • Tweet

What you can read next

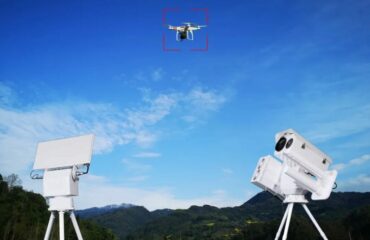

Drone jammer and drone detection system

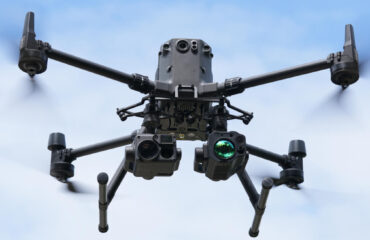

DJI M300 drone flamethrower
DJI M300 drone mounted flamethrower

Categories

  • Drone New
  • Company News
  • Mapping Drone
  • Public Safety drone
  • Technology
  • Uncategorized

Recent Posts

  • Drone Payload drop kits release mechanism system-goods delvery drop box

    The drone drop kits, usually it has 2 types, in...
  • DJI M300 drone flamethrower

    DJI M300 drone mounted flamethrower

    The drone flamethrower device can remove powerl...
  • Police Security Smoke tear gas Shell Drone Launcher

    The UAV smoke bomb tear gas launcher system can...
  • The Best Air Payload Drop Release Mechanism system for DJI Matrice 300 Drone

    Drones are widely used in public safety, firefi...
  • DJI Agras T30 Price and specs

    The DJI T30 is the biggest agriculture spraying...

Featured Posts

  • Drone Payload drop kits release mechanism system-goods delvery drop box

    0 comments
  • DJI M300 drone flamethrower

    DJI M300 drone mounted flamethrower

    0 comments
  • Police Security Smoke tear gas Shell Drone Launcher

    0 comments
  • The Best Air Payload Drop Release Mechanism system for DJI Matrice 300 Drone

    0 comments
  • DJI Agras T30 Price and specs

    0 comments

Recent Comments

    Archives

    • November 2022
    • March 2022
    • February 2022
    • December 2021
    • August 2021
    • June 2021
    • May 2021
    • December 2020
    • November 2020
    • September 2020
    • August 2020
    • June 2020
    • April 2020
    • October 2019
    • September 2019
    • August 2019
    • July 2019
    • June 2019
    • May 2019
    • March 2019

    Meta

    • Log in
    • Entries feed
    • Comments feed
    • WordPress.org

    GET A FREE QUOTE

    Please fill this for and we'll get back to you as soon as possible!

    About Us

    We are a professional enterprise drone, VTOL, drone payload, drone accessories supplier that focuses on industrial drone solution on agricultural spraying, public safety, law enforcement, search rescue, fire industry.mapping and surveying.industrial inspection such as power line and gas oil pipe inspection.tower inspection environmental, air and water condition monitoring, enterprise aerial photography. we supply a full drone solution , one-stop drone solution provider .

    Product Categories

    • Privacy Policy
    • Term & Condition
    • F.A.Q

    GET IN TOUCH

    Tel (86) 18681572770
    WhatsApp: +86 18681572770
    Email: info@uavfordrone.com

    UAVForDrone --Ramoton Tech
    4Th Floor, D Building, HangCheng Industry Park, QianJing 2nd Road, XiXiang, BaoAn Dist, ShenZhen 518101, China

    • GET SOCIAL

    © 2014-2022 UAVForDrone All rights reserved.

    TOP
