As we both know that, in the Drone field,DJI is the world famous brand and NO 1 company,not only for the consumer drone but also for the enterprise / industry drone.
For the agriculture spraying drone,it is DJI AGRAS series,that included the following: DJI AGRAS MG-1 ( the first version of DJI agriculture spraying drone)
DJI AGRAS MG-1S (The advance version of DJI agriculture spraying drone) and the DJI AGRAS MG-1P ,Smart high efficient ,also with GNSS station RTK )

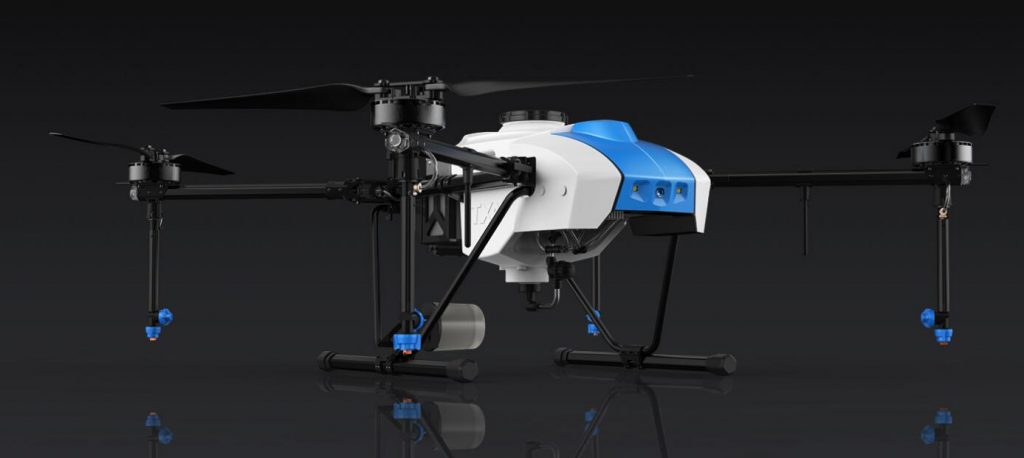

Now we are introduce our New Model agriculture spraying Drone, APK-12
The Following features :
With the DJI core technology, DJI A3 fly control,DJI motor,DJI ESC,DJI radar,DJI FPV, also the DJI remote contoller,even the DJI propellers.it means the core parts all are made by DJI , we can consider this one is the another version of DJI MG-1P , the advanced version, but larger capacity ,payload up to 12L .
The new agriculture spraying drone has completely upgraded the whole machine. The new drone further optimizes the overall structure of the fuselage and is more modular. With a multi-control, autonomous flight, intelligent spray and other functions, it is suitable for a variety of complex terrain. With an working area of up to 110 acres per hour, the operating efficiency is greatly improved, bringing a new experience to agriculture spraying.
12Kg load
RTK positioning
Autonomous flight
FPV camera
Folding body
High precision radar
Terrain tracking flying
Powerful performance, high efficiency.
The drone using a new power system, a new upgraded 33-inch rotor, combined with a wind-optimized spray system that increases the effective spray range of the MG-1P by 20% to 5 meters; using the latest coordinated turn flight algorithm, flying The efficiency is increased by 20%; various optimizations can increase the spraying efficiency of the drone by 40%, and the operation can reach 110 mu per hour; the flight power redundancy can be increased by 20%, and the flight is more stable and reliable. Larger rotors produce a stronger downwind wind field, enhanced penetrating power, more uniform droplet distribution, and further plant protection effects
FPV camera, safe to see
The R10-2019 plant protection machine has a new 123° wide-angle lens, which can clearly display the front of the plant protection machine on the remote control, providing a real-time reference for remote obstacle-free flight during operation. With the FPV camera, the flying hand can pass the FPV back to the real-life image to achieve flight management, and the operation planning is more time-saving and efficient.
Foldable drone structure, continuing the classic
The application of the third-generation patent folding design of Xiangnong Innovation makes the R10 2019 complete shape conversion as fast as 9 seconds, which effectively reduces the time-consuming operation of the transition. The R10 in the folded state can be easily placed into the trunk of a general car, and is highly adaptable to transportation.
RTK positioning, more accurate operation
With the D-RTK high-precision navigation and positioning technology, the positioning accuracy is up to centimeter level, the route trajectory can be accurately and repeatedly called; the dual antenna direction finding technology has strong anti-magnetic interference capability, ensuring the R10 is close to the high-voltage line and so on. Stable flight in the environment. The agriculture spraying drone high-profile version needs to be used with a new generation of base stations and handheld plotters.
Structural optimization, more modular.
The new agriculture spraying drone further optimizes the fuselage structure, reducing the overall line /cable by 30% and increasing the modularity by 20%, making maintenance easier.
Solid sowing function.one drone with multi-purpose .
The new APK-03 can be refilled with a solid seed sowing system that spreads 0.5-5 mm of granular material. It can not only sow seeds, but also spread solid fertilizers such as fertilizers and snow melting agents, further broaden the scope of use of plant protection drones and realize multi-purpose use.
High-precision radar for safer operation
The APK-012 is equipped with a high-precision radar. The high-precision radar combines three directional radars with an obstacle-avoidance radar, doubling the sensitivity and greatly improving obstacle perception and ground-flight capabilities. It can effectively reduce the safety risks caused by common obstacles in farmland during daily operations. The active sensing obstacle avoidance function works around the clock and is immune to light and dust.
Autonomous flight, precise and efficient
TheAPK-12 adopts a new version of the handheld ground station. The operation interface is more compact, the operation menu is more user-friendly, and it has the functions of one-button take-off and landing, large-slope simulated flight, automatic route planning, etc., so that the plant protection drone becomes ordinary. Human efficient plant protection tools.
